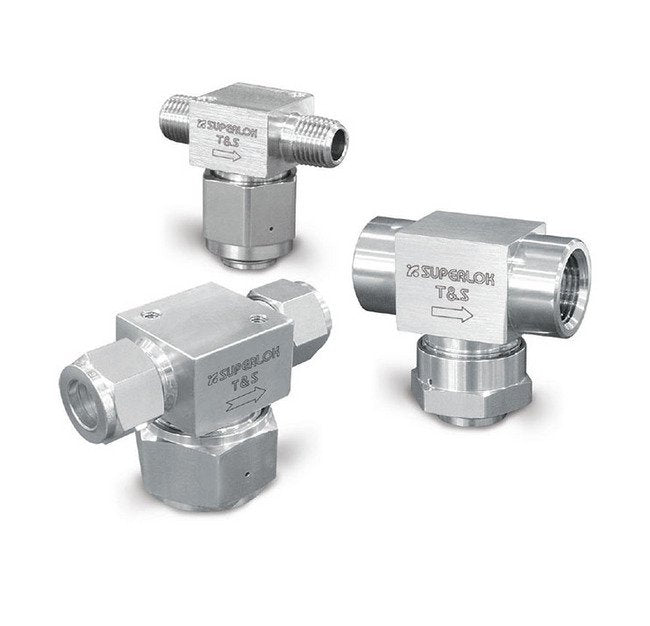

STF Series Micron Tee Filter with 4.4mm Orifice & 6mm Superlok Inlet
STF Series Micron Tee Filter with 4.4mm Orifice & 6mm Superlok Inlet
SKU:STF-9d80e1
STF Series Micron Tee Filter for precise filtration, 4.4mm Orifice, 6mm Superlok Inlet
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
STF Series Micron Tee Filter with 4.4mm Orifice & 6mm Superlok Inlet
$99.99
Quantity: 1
Claim Your Seller Account
STF Series Micron Tee Filter with 4.4mm Orifice & 6mm Superlok Inlet
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STF Series Micron Tee Filter is designed for precision filtration in demanding applications. Featuring a 4.4mm orifice and 6mm Superlok inlet end connections, this filter ensures efficient removal of particulate contaminants. The sintered filter element, with a large effective filtration area, can be easily replaced without disrupting the system, ensuring minimal downtime and maintenance costs. Constructed from high-quality 316 stainless steel and brass, this filter guarantees durability and reliable performance. With a maximum operating pressure of 6000 psi and a wide temperature range, this filter meets stringent industry standards for robust filtration solutions.
Product Specifications
Features Features
Remove system particulate contaminantsThe filter element can be replaced without removing the body in the systemReplaceable sintered filter element
Note Note

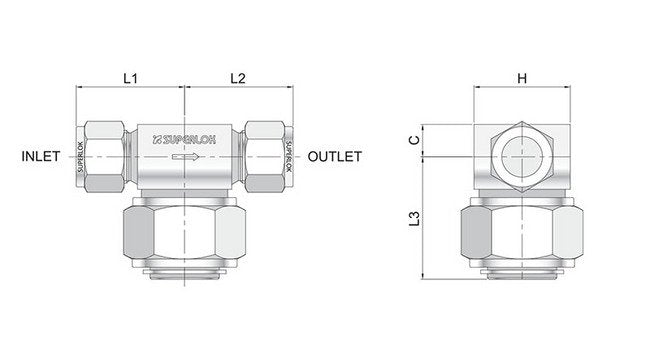

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension C
9.7 mm
Technical Specs Dimension H
27.0 mm
Technical Specs Dimension L1
31.2 mm
Technical Specs Dimension L2
31.2 mm
Technical Specs Dimension L3
43.4 mm
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
6000 psi | 414 bar
Technical Specs Operating Temperature Range
-40 to 250 ºF | -40 to 121 ºC
Technical Specs Orifice Size
4.4 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
