This protective cover has been helping to stop false fire alarms around the world for more than 35 years, without restricting legitimate alarms. All models offer excellent protection against physical damage (both accidental and intentional) and several against severe environments both inside and out. It is ideal for schools, colleges, hospitals, nursing homes, stores, hotels and public buildings of almost every kind where there is a threat of false alarms.
Product Specifications
Accessories
STI-3100 - 2 in. conduit spacer with 1/2 in. conduit entry (no gaskets included)STI-3104 - 2 in. conduit spacer with 3/4 in. conduit entry (includes one 3/4 in. conduit entry gasket)STI-1102 - Replacement horn for cover with alarmSTI-1280 - Backplate for Stopper II® and Weather Stopper® series
Approvals And Warranty Testing
It has been tested and approved or listed by:UL, cUL Listed No. S2466For fire alarm applications, UL38 requires outdoor listed stations for outdoor useFactory Mutual No. OG6A2.AY (STI-1100 and STI-1130 only)State of California (Obtain local fire marshal approval)MEA 49-00-E (STI-1200)Flush models ADA Compliant. Surface models ADA Compliant for operation (UL Certified No. S2466)Weather Stopper® versions designed to meet the requirements of IP54.The indoor/outdoor rated station covers, when mounted on a smooth surface, provide a rain tight seal similar to a 3R enclosure rating.
Approvals And Warranty Warranty
3 y

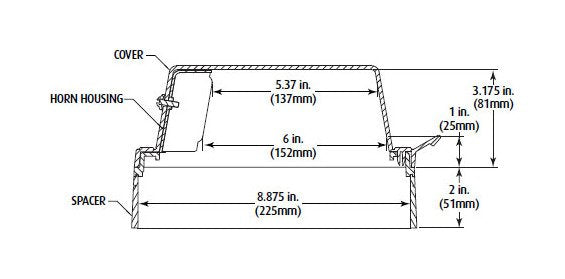

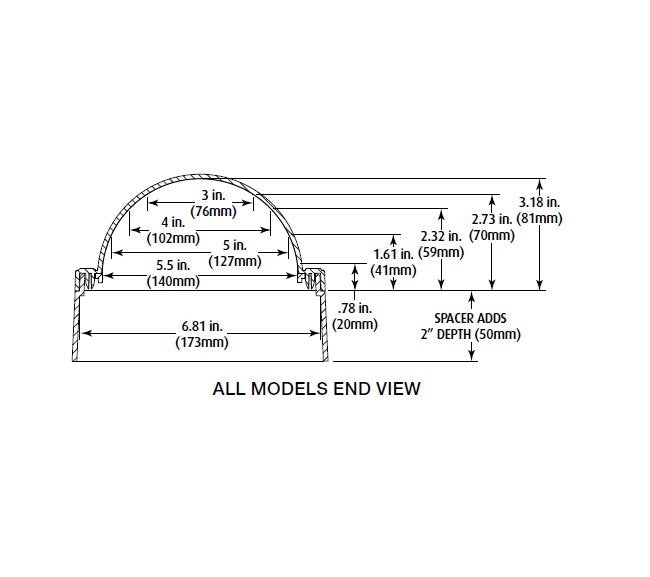

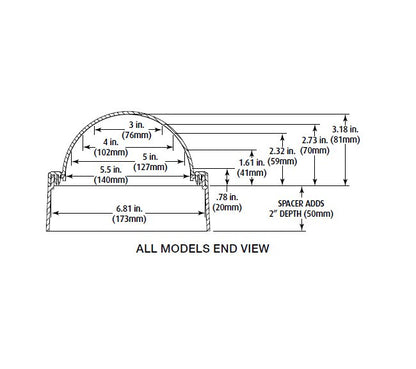

External Dimensions Flush Depth
3.3 in | 84 mm
External Dimensions Flush Height
10.2 in | 259 mm
External Dimensions Flush Width
7.2 in | 183 mm
External Dimensions Surface Depth
5.5 in | 140 mm
External Dimensions Surface Height
10.2 in | 259 mm
External Dimensions Surface Width
7.2 in | 183 mm
How It Works

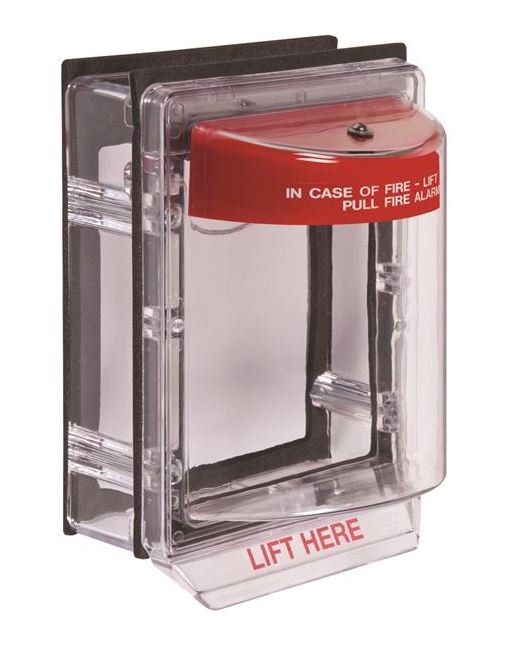

Stopper II® consists of a clear, tamperproof, tough polycarbonate shield and frame, but the line includes models with the option of a piezo horn, spacer, Form “C” dry relay contact and gaskets. The cover accommodates most manual pull stations. When the Stopper II® with horn is lifted to gain access to the protected alarm, a piercing self-contained 95 or 105 dB warning horn (at one foot) sounds. Immediate attention is drawn to the area and a prankster will either run or be caught. The cover is connected to the frame by a cable. When the cover is lifted, it drops off of the frame and a horn will sound (models with horn) until the cover is snapped back onto the frame or for the life of the battery.
Important Notice
Stopper II® "FIRE" models are intended to be used in areas where the incidence of false fire alarms from manual pull stations is high or has proven to be a serious problem. Any disadvantage of this device is more than balanced when one considers the consequences of false fire alarms, especially if fire service personnel and equipment are responding to a false fire alarm when they are needed for a real fire somewhere else. Add to this the disruption to the facility when false alarms occur. If you have, or may have, a problem with false fire alarms or physical/weather damage to your fire alarm activation devices, the Stopper II® could prove invaluable.
Key Features Design
Larger sizes and surface mounted pull stations accommodated with STI-3100 conduit spacer.Weather models have closed cell gaskets.The Stopper II® design is a registered trademark of Safety Technology International, Inc.
Key Features Electronics
Power source is a 9 V DC alkaline battery included on standard Stopper II® (remote powered unit available)."RC" models include one Form "C" dry relay contact and are capable of operating from 9-24 V DC remote power or 9 V DC battery power.
Key Features General Information
Proven effective for more than 35 years in helping stop false fire alarms without restricting legitimate alarms.Can be used as a guard against physical damage to a manual pull station, with or without the optional warning horn.Protect devices such as EPOs, call boxes, telephones and emergency shutdowns by changing the color and messaging.
Key Features Installation
When covering a pull station outside, UL requires stations to be listed for outdoor use.Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).
Key Features Options
Optional horn has a choice of 95 or 105 dB at one foot.Standard red units have "In Case of Fire…" label unless specified with "no label" or "custom label" (extra charge for custom label).Horn housing is available in red, blue, green or yellow with optional custom labeling.
Specifications Model Type
Stopper II® with horn and spacer, Gaskets (Indoor/Outdoor Rated)
Specifications Note For Model Type
Add NR for no label on horn housingAdd CR for custom label on horn housing
Specifications Operating Temperature
-40 to 121 ºC | -40 to 250 ºF
Specifications Power Source
9 Volts (V) DC Alkaline Battery included on Standard Stopper II®
Warning
For RC models: UL Listing does not permit relay contacts to connect to the fire alarm or a life safety function. The power supply for horns, according to UL Listing, cannot be connected to a UL Listed fire alarm system. For electrical specifications see install book. RC models contain one set of Form "C" dry contacts. Contacts rated 30 V AC/V DC 1 amp.
