STI-4130 Break Glass Stopper® Fire Alarm
STI-4130 Break Glass Stopper® Fire Alarm
SKU:STI-78201a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

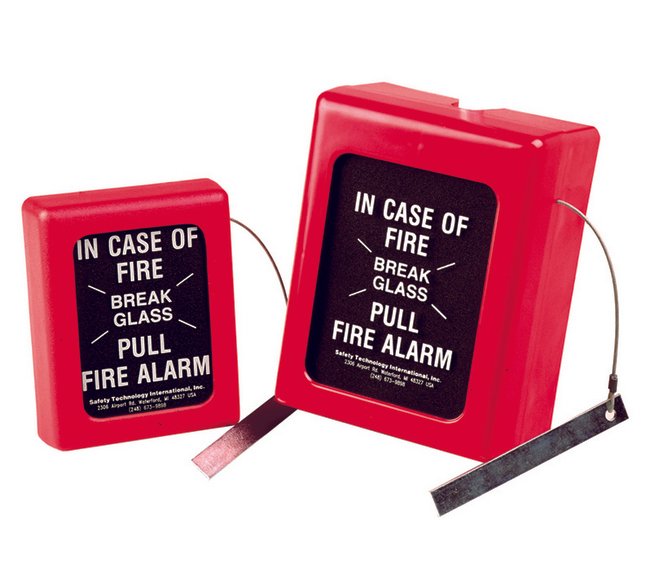

Accepted by many fire marshals, these versions of the world famous STI Stopper II® are designed for areas where a "break glass" cover is specified, such as unsupervised areas. Each device consists of a red polycarbonate cover, mounting frame, a pane of single-strength clear glass (easily replaced when broken), a glass-breaking bar, screws and anchors for installation. Gaskets are also available to improve weather resistance.
Product Specifications
Accessories
Several accessories are available for the Break Glass Stopper®. They include a polycarbonate mounting backplate (recommended for all installations with irregular mounting surfaces), additional spacer for stations with greater depth or exposed conduitKIT-08 - Replacement Break Glass ToolKIT-67 - Replacement Glass for STI-6700 - Reads "Break Glass"KIT-6702 - Tamperproof Screw KitSTI-3002 - Weather Gasket - large (Gaskets may need to be trimmed prior to installation)STI-3003 - Conduit Gasket 1/2 in.STI-6501 - Weather Gasket - small (Gaskets may need to be trimmed prior to installation)

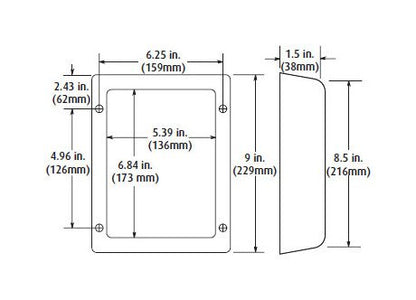

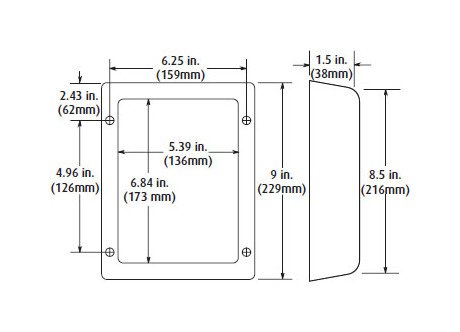

Dimensions Overall Depth
1.5 in | 38 mm
Dimensions Overall Height
9 in | 229 mm
Dimensions Overall Width
6.25 in | 159 mm
How It Works
Three models are available for fire, the smaller STI-6100, the larger STI-4100 and the STI-4130 for surface mount; the STI-4130 is the KIT-900-R conduit spacer and the STI-4100, the spacer will add two inches of depth and accommodate up to 3/4 conduit. A fourth "generic" model (STI-6700) is available to cover devices other than manual pull stations. The same size as the STI-6100, it includes a wall mount hanging clip for keys, etc. This model for non-fire applications simply says, "BREAK GLASS"."
Key Features Construction
Housing is molded of tough polycarbonate material.
Key Features Design
Glass replacement is simple. Suggestion: Order extra panes with each unit, for immediate replacement.
Key Features General Information
Fire alarm remains clearly visible and accessible.Aesthetically appealing.Fast, easy installation.Accepted by many fire marshals. Obtain local fire marshal approval prior to installation.
Key Features Installation
Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).
Key Features Options
Gaskets available to improve weather resistance.
Note
Local fire marshal approval should be obtained prior to installation.Glass is clear - only appears dark for photo purposes.
Specifications Application
Fire Products
Specifications Model Type
Kit containing both STI-4100 and KIT-900-R
Specifications Operating Temperature
-40 to 121 ºC | -40 to 250 ºF
Specifications Warranty
3 y
