STI-6255 Mini Theft Stopper® Alarm
STI-6255 Mini Theft Stopper® Alarm
SKU:STI-e5767b
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-6255 Mini Theft Stopper® Alarm
$49.99
Quantity: 1
Claim Your Seller Account
STI-6255 Mini Theft Stopper® Alarm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

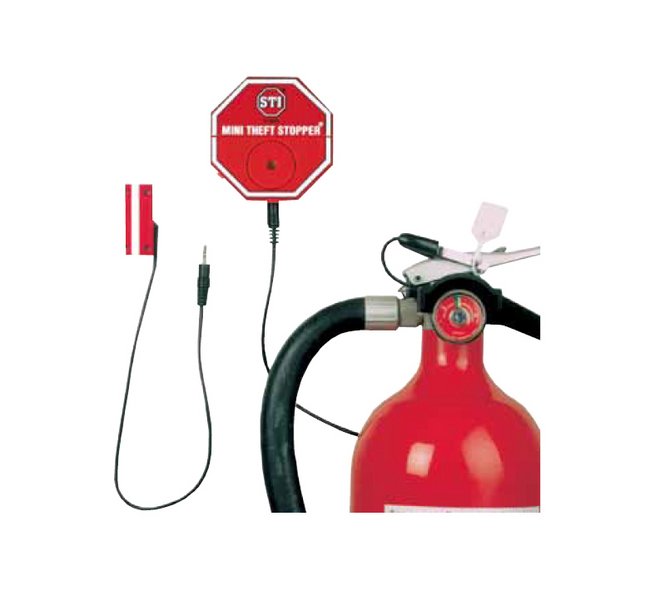

Here is an inexpensive yet highly effective way to protect fire extinguishers and a wide range of equipment such as fire hoses, sprinkler shutoff valves, guns and medicine cabinets from theft. The device is compact, highly effective and extremely versatile. It does not interfere with fire fighting or use of the protected item in any way. Also, the simplicity of design contributes to its high degree of reliability.
Product Specifications
Accessories
KIT-65 - Replacement Breakaway Tie Wraps (Qty. 5)
Cable Specifications Cable Diameter
1/8 in
Cable Specifications Cable Length
16 to 18 in
Cable Specifications Cable Material
Galvanized Steel
Dimensions Overall Depth
1 in
Dimensions Overall Width
3.37 in
How It Works
When used as a cabinet alarm, Mini Theft Stopper (STI-6254), is mounted next to the door or in the cabinet. The reed switch unit is mounted on the door jam and the matching magnet is mounted on the door across from the reed switch. When the protected cabinet door is opened the device sounds a 105 dB warning horn. For a freestanding fire extinguisher or other freestanding equipment, Mini Theft Stopper (STI-6255), has a special clip that can be used in several ways. An extinguisher’s pull pin may be routed through the holes in both prongs of the clip, the clip is then held in place by the extinguisher’s seal and when the seal is broken to use the extinguisher, the alarm sounds. The steel clip can also be placed under any type of equipment. When the protected equipment is moved, the clip opens and the alarm sounds immediately.
Key Features Construction
Tough, ABS construction.
Key Features Design
Compact design. It is 3.37 in. (86 mm) in diameter and 1 in. (25 mm) deep.
Key Features Electronics
Three minute automatic reset upon activation.Sounds a powerful 105 dB warning horn when activated, drawing attention in a hurry.Self-contained 9 V DC alkaline battery is provided.
Key Features General Information
Highly visible "stop sign" design discourages wrongful use of extinguishers.Deactivation pin provided for service by authorized personnel.Recommended operational range 32º to 120 ºF (0° to 49 ºC)Does not interfere with lifesaving operations.
Key Features Installation

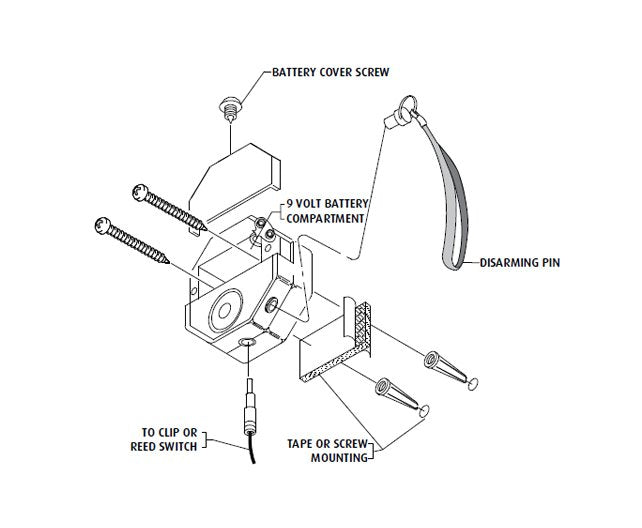

Mounts next to extinguisher or in cabinet.Easy to install with all screws and anchors included.
Note
In moderate to high noise, a sound level check should be done (monthly) to verify audibility in all areas the unit is to alert. End user must verify the alarm and battery function every six months and replace battery annually or as required.
Product Information
Mini Theft Stopper® has two versatile methods of activation. This flexibility of design and compact housing allows this multipurpose unit to protect equipment or cabinets of virtually any kind without sacrificing performance.
Reed Switchmagnet Activation

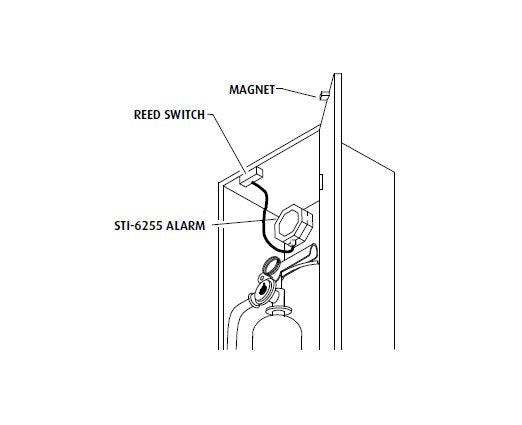

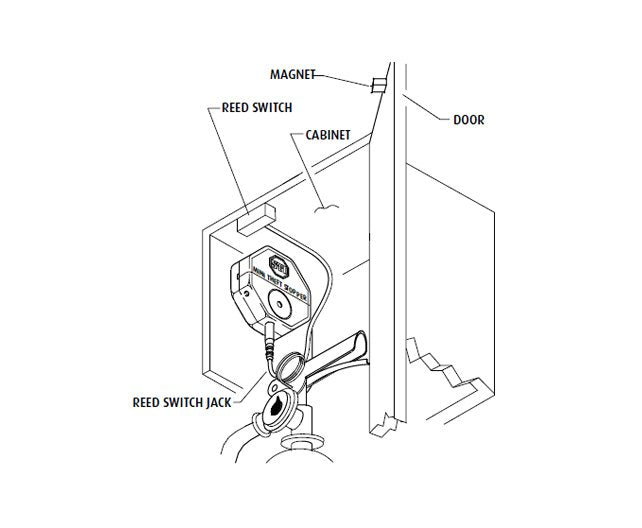

This method of activation is the reed switch and magnet which can be used to protect doors and cabinets, etc. The Mini Theft Stopper is mounted next to the door or in the cabinet, the reed switch mechanism on the door jam as shown below and the magnet is mounted on the door so that when it is closed it is in close proximity to the reed switch. When opened, the alarm will immediately activate.
Specifications Alarm Current
115 mA
Specifications Application
Theft Prevention
Specifications Auto Reset
3 min
Specifications High Volume Warning Horn At 1 Foot Ft
105 dB
Specifications Housing Material
Polycarbonate
Specifications Model Type
Mini Theft Stopper - Reed and Clip Activation
Specifications Operation
Steel Contact Clip Magnetic Reed
Specifications Power Source
9 Volts (V) DC Alkaline Battery
Specifications Recommended Operating Temperature
32 to 120 ºF | 0 to 49 ºC
Specifications Warranty
1 y
Versatile Spring Steel Activation
A special spring steel clip offers a variety of possibilities. The clip may be used to protect free-standing fire extinguishers by routing the extinguisher's pull pin through the holes in both prongs of the clip, the clip is then held in place by the extinguisher’s breakaway seal. When the seal is broken to use the extinguisher, the alarm immediately sounds. The steel clip may also be placed under almost any type of equipment. When the protected device is lifted, the clip expands and the alarm will sound immediately. NOTE: If the extinguisher pin method is used, the State of California requires installation of pin seal by a licensed fire extinguisher contractor.
