STI-6583 Heater Kit
STI-6583 Heater Kit
SKU:STI-ce483e
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-6583 Heater Kit
$49.99
Quantity: 1
Claim Your Seller Account
STI-6583 Heater Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
These easy to install kits are the answer for protecting expensive electronic units that must be installed in low temperature areas, indoors or outdoors. In addition to assuring continued operation of protected units, they also keep LCD’s from becoming sluggish and help them stay visible.
Product Specifications
Heater Pad Size Heater Pad Height
4 in
Heater Pad Size Heater Pad Width
5-1/2 in
How It Works

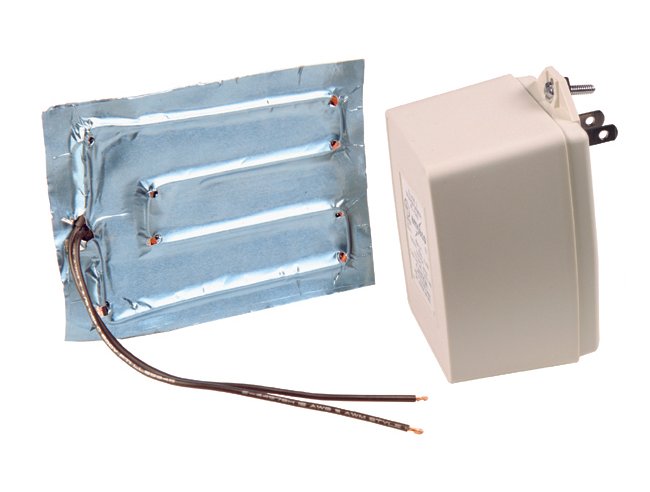

The 24-volt system (STI-6583) is designed to get its power directly from a remote power supply (other than the fire panel) or CCTV power source and is rated at 8 watts. STI-6583 systems include a foil heater pad with adhesive backing and a thermostat. STI Heater Kits operate in conjunction with enclosures such as the STI Stopper II® and Universal Stopper® to protect and help expensive electronic components remain operable in low temperature areas.
Key Features Electronics
Thermostat opens at 23º and closes at 41 ºF (-5º to 5 ºC).12-volt model available.
Key Features General Information
Allows critical electronic components to operate at low temperatures.Keeps electronic components warm when mounted in a protective keypad cover. Results may vary based on installation and enclosure used.Temperature controlled.Keeps LCD's from becoming sluggish and helps them stay visible at freezing temperatures.One (1) year warranty from the date of original purchase.
Key Features Installation
Easy to install self-adhesive heater pad.
Note
Keeps electronic components warm when mounted in a protective cover or enclosed space. Results may vary based on installation and enclosure used. Not polarity sensitive components.
Specifications Available Voltage
24 V
Specifications Capacity
8 W
Specifications Current
0.5 A
Specifications Model Type
24 Volt (V) Heater Kit
Specifications Operating Temperature
-5 to 5 ºC | 23 to 41 ºF
Specifications Sti 6583 Power
24 Volt 8 Watts (0.5 amp) AC or DC power supply not included
Specifications Thermostat Active
Opens at 23°F and closes at 41°F (-5°C to 5°C) Creep action thermostat
Specifications Warranty
1 y
Thermostat Size Thermostat Depth
3/16 in
Thermostat Size Thermostat Height
1/4 in
Thermostat Size Thermostat Width
3/4 in
