STI-7500B Polycarbonate Enclosure
STI-7500B Polycarbonate Enclosure
SKU:STI-8bde19
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-7500B Polycarbonate Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
STI-7500B Polycarbonate Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

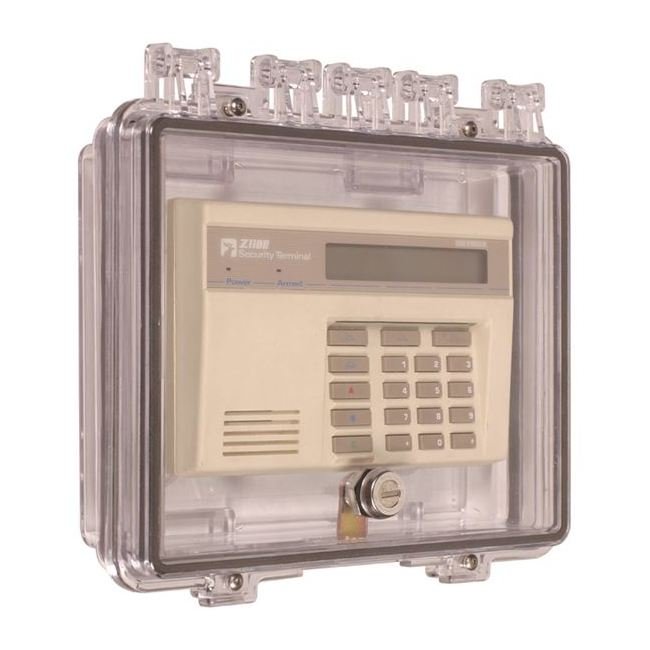

Multipurpose lockable enclosure for a wide range of larger size devices, components and instruments, such as keypads, annunciators and automated external defibrillators (AEDs) which require protection from vandalism, accidental damage, as well as the elements, such as dirt and grime. Spacers, integrated hinge and covers are formed from tough polycarbonate material. The polycarbonate enclosures are backed by a three year guarantee against breakage and damage in normal use. STI enclosure is lockable with either a key lock.
Product Specifications
Accessories
KIT-H18054 - Two replacement keys #CH751KIT-318 - Adapter plate used for mounting "B" back box to pedestalKIT-6297B20 - 3/4" conduit hub for "B" back boxesSTI-1283 - Backplate
Approvals And Warranty Industry Standards
The STI-7500 series only has been tested and approved or listed by : Underwriters Laboratories (UL)/ Canadian Underwriters Laboratories(cUL) Listed No. S7255
Approvals And Warranty Warranty
3 y

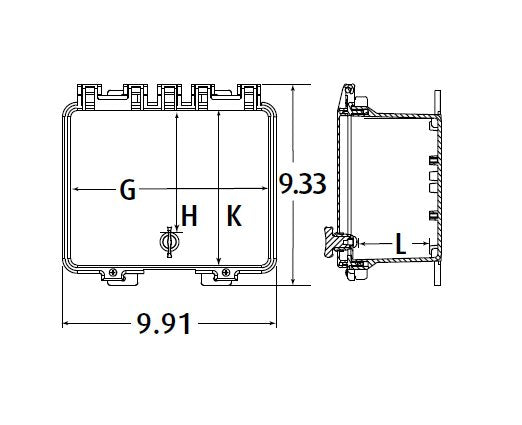

Dimensions Dimension G
8.50 in
Dimensions Dimension H
5.40 in
Dimensions Dimension K
5.50 in
Dimensions Dimension L
0.55 in
Dimensions Overall Height
9.33 in
Dimensions Overall Width
9.91 in
Key Features Construction
Cover, integrated hinge and spacers are formed from tough polycarbonate material.
Key Features General Information
Protection for large units against physical damage, grime and severe environments.Can be used over volume or lighting controls.Each protected unit can be clearly seen and quickly identified.
Key Features Installation
Fast and easy installation.Mounting hardware and gaskets are included.Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).

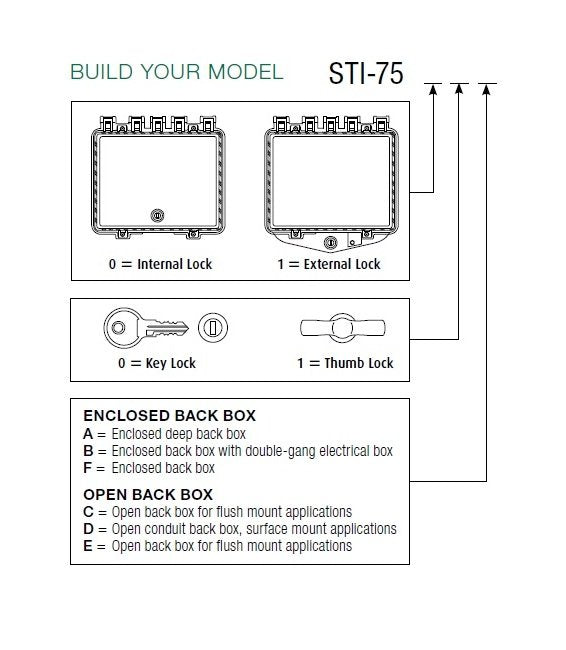

Key Features Options
Key or thumb lock available.
Notice
STI recommends replacement of gaskets every five years for outdoor applications.
Specifications Application
Polycarbonate Protection
Specifications Back Box Type
Enclosed Back Box with Double-Gang Electrical Box
Specifications Flammability Rating
94V-2
Specifications Lock Type
Internal Key Lock
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
