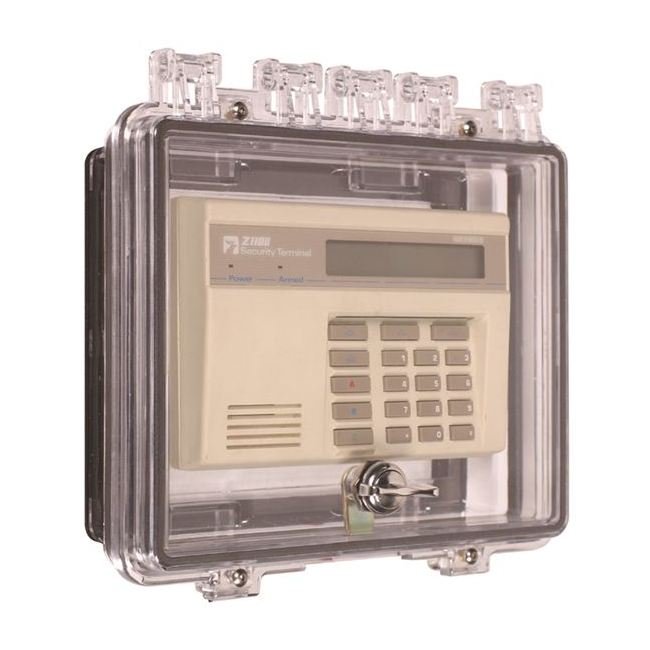

Multipurpose lockable enclosure for a wide range of larger size devices, components and instruments, such as keypads, annunciators and automated external defibrillators (AEDs) which require protection from vandalism, accidental damage, as well as the elements, such as dirt and grime. Spacers, integrated hinge and covers are formed from tough polycarbonate material. The polycarbonate enclosures are backed by a three year guarantee against breakage and damage in normal use. STI enclosure is lockable with either a thumb lock.
Product Specifications
Accessories
KIT-H18054 - Two replacement keys #CH751KIT-6297B20 - 3/4" conduit hub for "C" back boxesSTI-1283 - Backplate
Approvals And Warranty Industry Standards
The STI-7500 series only has been tested and approved or listed by : Underwriters Laboratories (UL)/ Canadian Underwriters Laboratories(cUL) Listed No. S7255
Approvals And Warranty Warranty
3 y

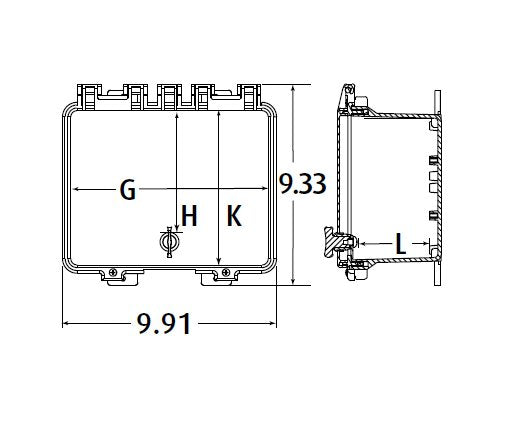

Dimensions Dimension G
7.81 in
Dimensions Dimension H
4.80 in
Dimensions Dimension K
5.25 in
Dimensions Dimension L
1.76 in
Dimensions Overall Height
9.33 in
Dimensions Overall Width
9.91 in
Key Features Construction
Cover, integrated hinge and spacers are formed from tough polycarbonate material.
Key Features General Information
Protection for large units against physical damage, grime and severe environments.Can be used over volume or lighting controls.Each protected unit can be clearly seen and quickly identified.
Key Features Installation

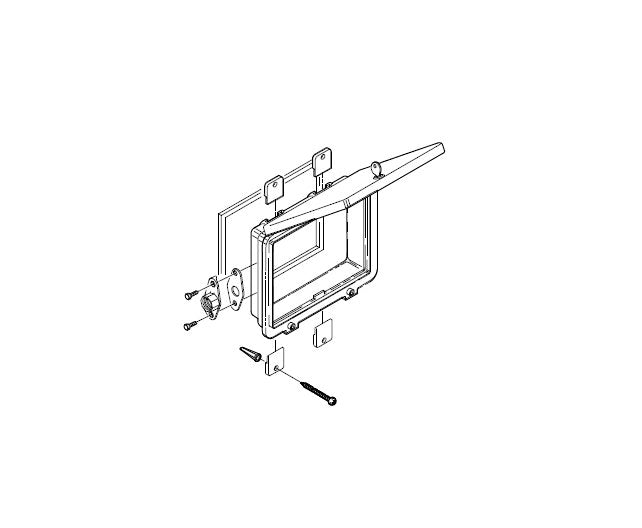

Fast and easy installation.Mounting hardware and gaskets are included.Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).
Key Features Options
Key or thumb lock available.
Notice
STI recommends replacement of gaskets every five years for outdoor applications.
Specifications Application
Polycarbonate Protection
Specifications Back Box Type
Open Back Box for Flush Mount Applications
Specifications Flammability Rating
94V-2
Specifications Lock Type
Internal Thumb Lock
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
