STI-7511A-HTR Heated Polycarbonate Enclosure
STI-7511A-HTR Heated Polycarbonate Enclosure
SKU:STI-b97462
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-7511A-HTR Heated Polycarbonate Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
STI-7511A-HTR Heated Polycarbonate Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

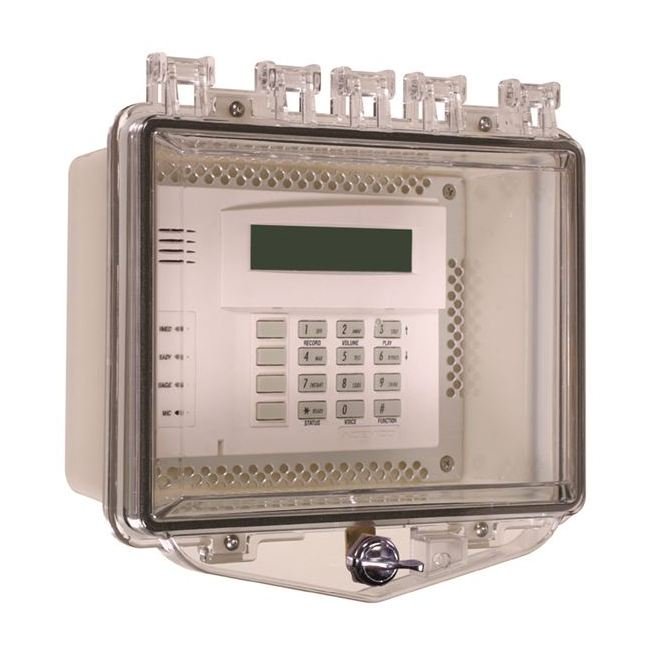

These covers are ideal for protecting a wide range of devices, components and sensitive units from vandalism and accidental damage as well as weather, dirt, dust and grime. Covers are designed to keep the enclosure at a temperature above freezing which allows the protected unit to be installed outdoors, in freezers, unheated warehouses or storage units. The radiant heat plate prevents LCD displays from becoming sluggish or freezing and operates on 12, 16.5 or 24 V AC/V DC. The STI-7511-HTR enclosures include an external thumb or key lock and have a choice of two enclosed back boxes.
Product Specifications
Accessories
KIT-H18021 - 3/4 Inch (in) NEMA 4X Rated rigid conduit hub for "A" back box (not included)KIT-318 - Adapter plate used for mounting "A", "B" or "F" back box to pedestalKIT-6297B20 - 3/4 Inch (in) conduit hub kit for "F" back box (not included)KIT-7500-HTR - Replacement heater plate for STI-7511- HTR series
Approvals And Warranty Warranty
3 y
Dimensions Overall Depth
5.17 in | 131 mm
Dimensions Overall Height
5.59 in | 142 mm
Dimensions Overall Width
9.91 in | 252 mm
Heater Output Heater Output Power At 12 Volt V Heater Output Vol
19 W
Heater Output Heater Output Power At 165 Volt V Heater Output Vo
36 W
Heater Output Heater Output Power At 24 Volt V Heater Output Vol
77 W
Heater Output Heater Output Voltage
12 V | 16.5 V | 26 V
How It Works
The radiant heat plate cycles as required when activated by one of the thermostats. It has three thermostats; a control thermostat, over temperature safety thermostat and a low temperature warning that can connect to a supervisory panel. This allows electronics to be protected from extreme temperatures.
Key Features Design
The radiant heat plate prevents LCD from becoming sluggish or freezing.
Key Features Electronics
Enclosure offers three thermostats; a control thermostat, over temperature safety thermostat and a low temperature warning that can connect to a supervisory panel.Includes 16.5 V AC, 40V A Class 2 auto resetting transformer.
Key Features General Information
Protection for large units against physical damage, dust, grime and severe environments.Allows electronic devices to be installed outdoors, in freezers, unheated warehouses or storage units.Three year guarantee against breakage of polycarbonate in normal use (one year on electromechanical and electronic components).
Key Features Installation
Mounting hardware and gaskets included.Typical working properties of polycarbonate are -40 º to 250 ºF(-40 º to 121 ºC).
Key Features Options
Choice of external thumb or key lock and two enclosed back boxes.
Specifications Application
Polycarbonate Protection
Specifications Model Type

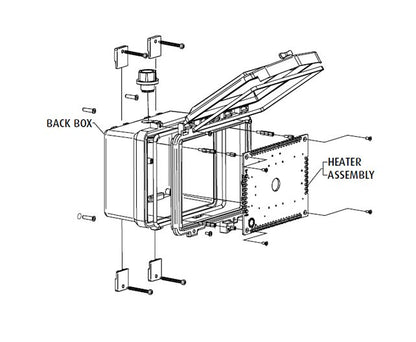

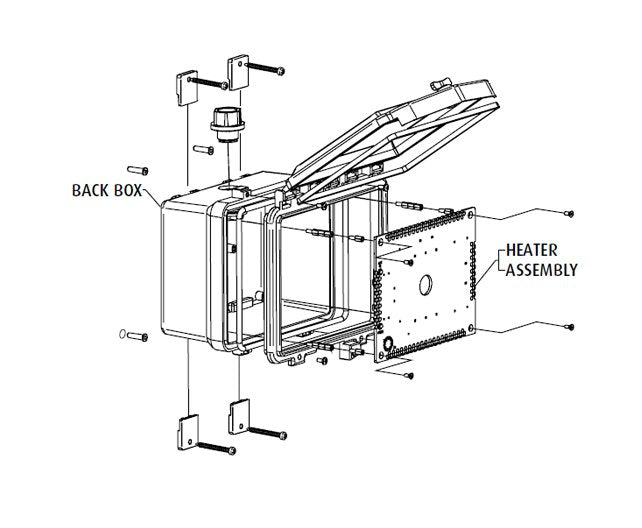

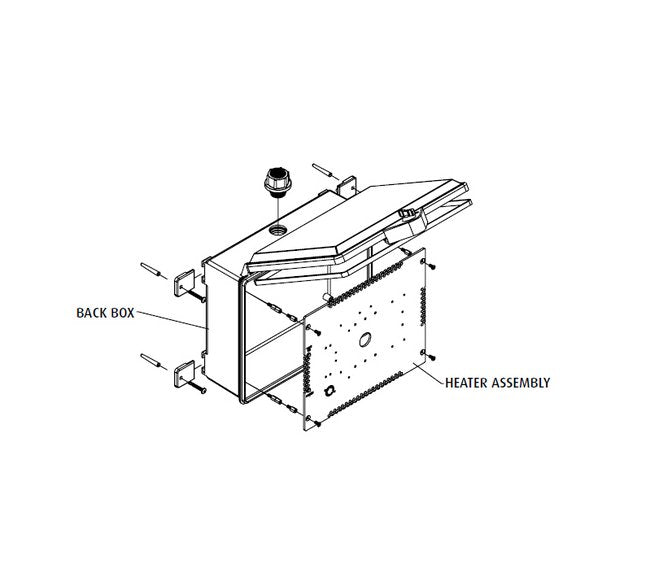

Cover with Heater, External Thumb Lock and Enclosed Deep Back Box
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
