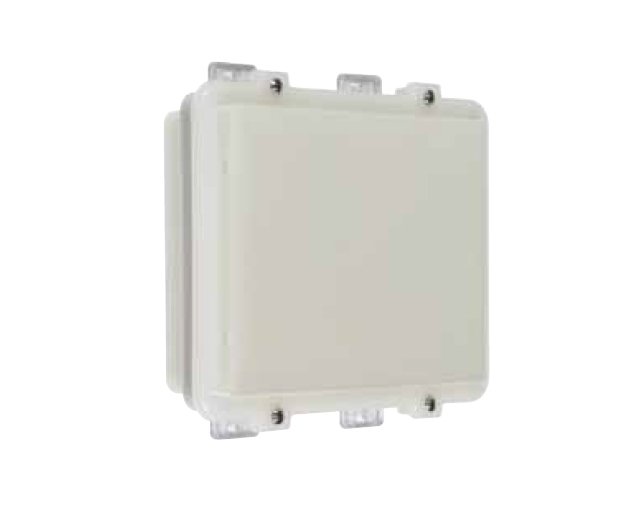

These waterproof, multipurpose sealed housings mount to either a wall or pedestal and are ideal for a variety of access control equipment. Molded of thick polycarbonate material which is backed by a three year guarantee against breakage in normal use.Housings are available in two depths. Back box "F" provides 2.0 inches of depth.
Product Specifications
Accessories
KIT-318 - Adapter plate used for mounting "A" or "F" back box to pedestal
Dimensions Depth
2.0 in | 50 mm
Dimensions Height
6.57 in | 166 mm
Dimensions Width
8.55 in | 217 mm
How It Works
The STI-7515 has four mounting tabs allowing it to be installed on a wall. It can be used as a multipurpose electrical enclosure, connection box, etc. The STI-7516 can be installed to a mounting pedestal and is ideal for a gate entry, call switch or any electrical device configuration.
Key Features Construction
NEMA 4.Housings are water resistant to provide added protection for these important devices.
Key Features Design
STI-7515 has four mounting tabs allowing it to be installed on a wall.
Key Features General Information
Helps solve installation problems for a variety of access control equipment.
Key Features Installation
Mounting hardware is included.Typical working properties of polycarbonate are -40 º to 250 ºF(-40 º to 121 ºC).
Key Features Options
Available in two depths.
Note

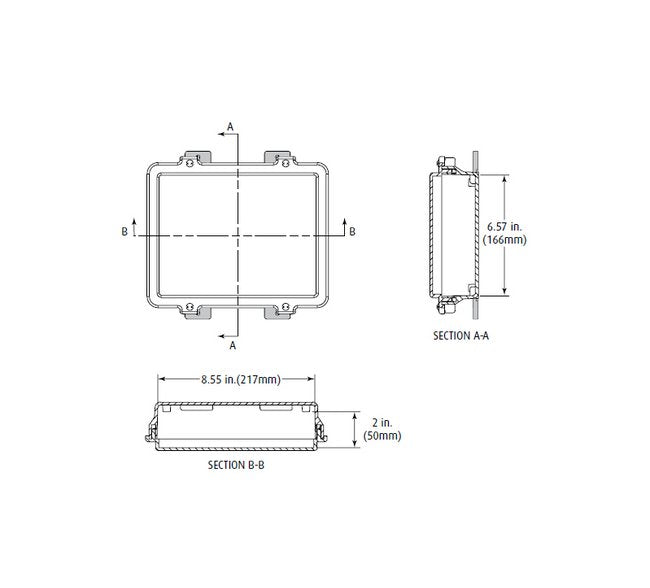

Housings do not include pedestal.The shaded areas represent the mounting tabs (included with STI-7515 only) for wall installation.
Specifications Application
Polycarbonate Protection
Specifications Model Type
Housing, Wall Mount, "F" Back Box
Specifications Warranty
3 y
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
