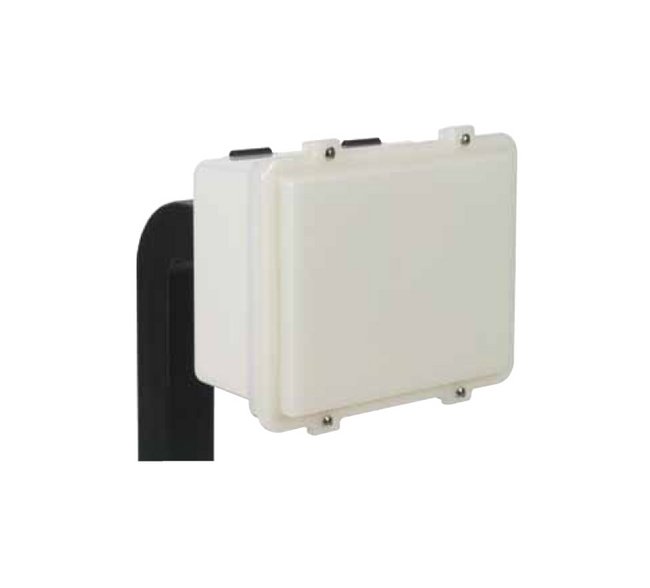

These waterproof, multipurpose sealed housings mount to either a wall or pedestal and are ideal for a variety of access control equipment. Molded of thick polycarbonate material which is backed by a three year guarantee against breakage in normal use.Housings are available in two depths. Back box "A" provides 4.25 inches of depth.
Product Specifications
Accessories
KIT-318 - Adapter plate used for mounting "A" or "F" back box to pedestal

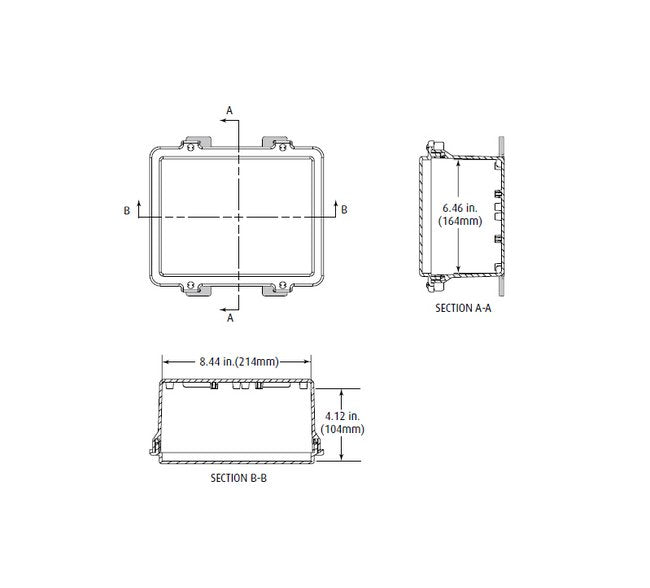

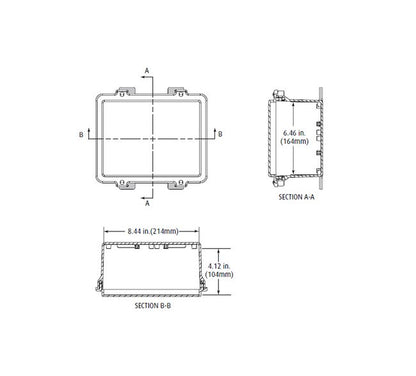

Dimensions Depth
4.12 in | 104 mm
Dimensions Height
6.46 in | 164 mm
Dimensions Width
8.44 in | 214 mm
How It Works
The STI-7516 can be installed to a mounting pedestal and is ideal for a gate entry, call switch or any electrical device configuration.
Key Features Construction
NEMA 4.Housings are water resistant to provide added protection for these important devices.
Key Features Design
STI-7516 is designed to be installed on a mounting pedestal and includes adapter plate (SUB-318).
Key Features General Information
Helps solve installation problems for a variety of access control equipment.
Key Features Installation
Mounting hardware is included.Typical working properties of polycarbonate are -40 º to 250 ºF(-40 º to 121 ºC).
Key Features Options
Available in two depths.
Note
Housings do not include pedestal.
Specifications Application
Polycarbonate Protection
Specifications Model Type
Housing, Pedestal Mount, Adapter Plate, "A" Back Box
Specifications Warranty
3 y
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
