STI-7522 Protective Cabinet Type Electrical Enclosure
STI-7522 Protective Cabinet Type Electrical Enclosure
SKU:STI-321ada
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-7522 Protective Cabinet Type Electrical Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
STI-7522 Protective Cabinet Type Electrical Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

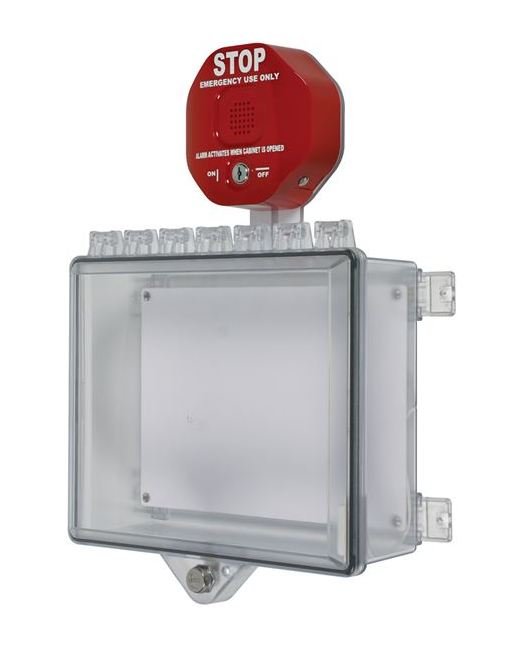

Multipurpose lockable cabinets for remote annunciators, fire alarm control panels or other electronic products which require physical or environmental protection. Helps guard against vandalism (accidental or intentional), as well as dirt, dust and grime (models without alarm). Covers mount on the wall enabling the unit to be stored in a central location. The cabinets are available with a key or thumb lock, with or without siren alarm or siren/strobe alarm. They also have an additional eyelet for a secondary lock or safety seal.
Product Specifications
Accessories
STI-6453 - Replacement siren alarmE05000 - Replacement siren/strobe alarmKIT-H18021 - Type 4X 3/4 Inch (in) rigid conduit hubKIT-H18054 - Additional key #CH751KIT-H18075 - Replacement key for siren/strobe alarmKIT-H19032 - Replacement key #2341; for siren alarmKIT-82 - #8; x 1.5 Inch (in) snake eye tamper resistant stainless steel screw (qty. 4)
Approvals And Warranty Warranty
3 y

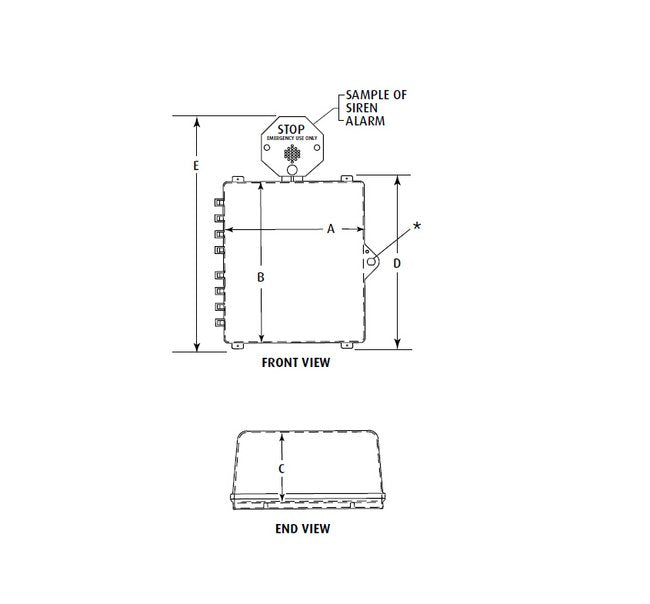

Dimensions Dimension A
8.875 in | 225 mm
Dimensions Dimension B
10.875 in | 276 mm
Dimensions Dimension C
3.625 in | 92 mm
Dimensions Dimension D
12 in | 305 mm
Dimensions Dimension E
19 in | 483 mm
How It Works
Cabinets are constructed of a clear polycarbonate which allows the unit within to be highly visible and accessible. When cabinet with siren alarm is opened, the alarm emits an ear piercing siren (model with siren/strobe alarm also flashes), drawing immediate attention to the area. Operator has to unlock the unit and open the lid for access.
Key Features Construction
Constructed of tough polycarbonate - the same material used in football helmets.
Key Features Design
Steel internal mounting plate providedDesign allows visibility at any angleAdditional eyelet can be used for secondary padlock or safety seal.
Key Features General Information
Clear UV-stabilized polycarbonate cover.
Key Features Installation
External mounting tabs.Complete with mounting hardware and gasket.Typical working properties of polycarbonate are -40º to 250 ºF (-40º to 121 ºC).Tamperproof mounting screws available.
Key Features Options
Includes thumb lock or key lock.Models available with or without siren alarm or siren/strobe alarmFrosted polycarbonate back box.Type 4X Approved, UL Listed.
Specifications Additional Eyelet Diameter
1/4 in
Specifications Application
Polycarbonate Protection
Specifications Color
Clear
Specifications Model Type
Cabinet with Key Lock and Siren Alarm - Clear
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
