STI-7553 Automated External Defibrillator Protective Cabinet
STI-7553 Automated External Defibrillator Protective Cabinet
SKU:STI-b33c3a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-7553 Automated External Defibrillator Protective Cabinet
$49.99
Quantity: 1
Claim Your Seller Account
STI-7553 Automated External Defibrillator Protective Cabinet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Multipurpose cabinets for remote AED (Automated External Defibrillator) units, which require physical or environmental protection. Helps guard against vandalism (accidental or intentional), as well as dirt, dust and grime. Cabinets mount on the wall enabling the unit to be stored in a central location. The cabinets are available with a thumb lock, which helps deter wrongful users from the unit and has an additional eyelet for a secondary safety seal.
Product Specifications
Accessories
KIT-65 - Optional breakaway ties (5 included)AED-LBL - Optional AED Label -2 included (applied to sides of cabinet; factory installed only)STI-6453AED - Replacement siren alarmSTI-SA5000-R - Replacement audio visual alarmKIT-SA505 - Replacement key switch mounting plate for audio visual alarmM05050-R - Replacement lens red (also available in amber, blue, green or white)KIT-W07550 - Wire shelf for STI-7550 series (included)KIT-W07551 - Wire oxygen rack for STI-7550 series (included with STI-7551, STI-7553, STI-7555)KIT-H18075 - Replacement Key for siren/strobe alarmKIT-H19032 - Replacement Key #2341; for siren alarm

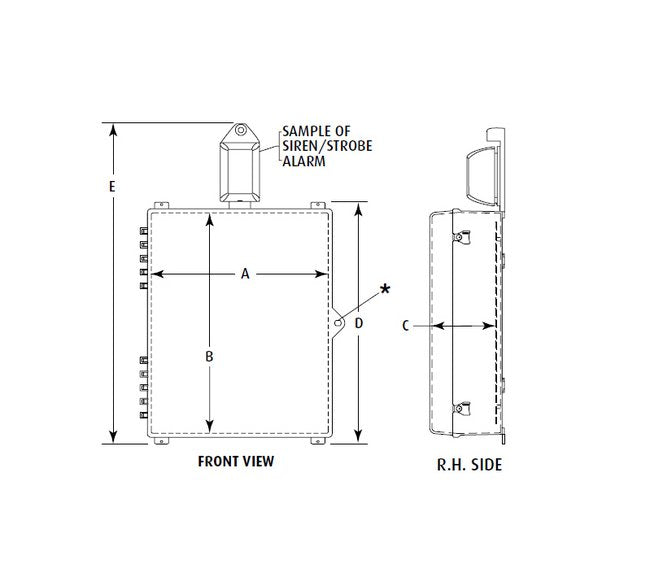

Dimensions Dimension A
19.75 in | 502 mm
Dimensions Dimension B
24.75 in | 629 mm
Dimensions Dimension C
7.31 in | 186 mm
Dimensions Dimension D
27.5 in | 699 mm
Dimensions Dimension E
34.7 in | 881 mm
How It Works
Cabinets are constructed of clear polycarbonate which allows the unit within to be highly visible from almost any angle. They are molded from the same material used in football helmets. When the cabinet is opened the optional alarm emits an ear piercing siren. The siren/strobe alarm is a combination of alarm and super bright flashing LEDs (shown right). It offers independent strobe and siren timing of 15 seconds, 30 seconds, 60 seconds or continuous. The siren alarm (shown left) emits for 30 seconds, 3 minutes or continuously (as preset by user). A key override will silence the alarm.
Key Features Construction
Clear polycarbonate; constructed from the same material used in football helmets.
Key Features Design
Additional eyelet can be used for secondary safety seal.Design allows visibility at almost any angle and does not require a sign.
Key Features General Information
Multipurpose polycarbonate cabinets help protect remote AED units against physical or environmental protection.Includes a coated steel internal mounting plate with a baked on white enamel finish.Includes thumb lock and adjustable wire shelf.Unlike metal cabinets, this version offers safe, rounded corners. It does not dent and there is no worry of paint chips.

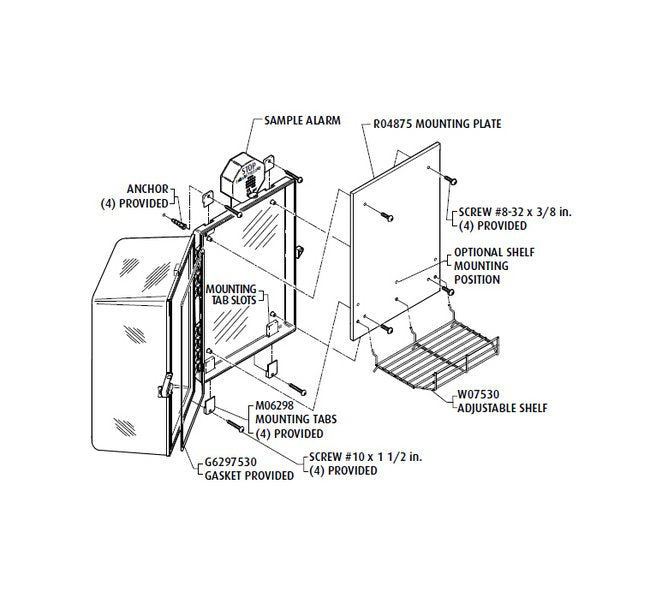

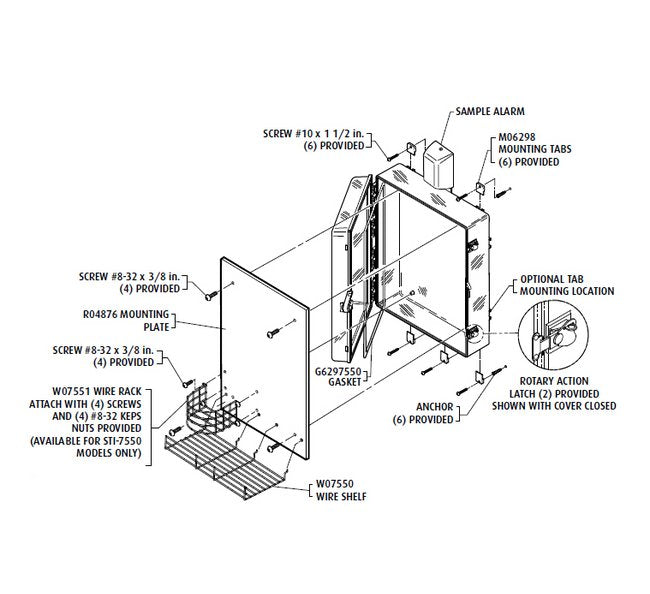

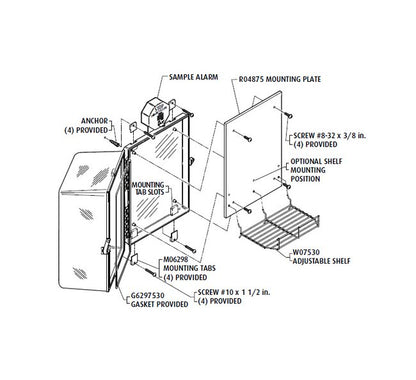

Key Features Installation
External mounting tabs or internal drill dimples.Complete with mounting hardware and gasket. Tamperproof mounting screws available.Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).
Key Features Options
Cabinet is available without alarm, with external siren alarm or siren/ strobe alarmSTI-7553AED SeriesVisible siren alarm helps deter vandalism and tamperingSiren alarm may be set for piercing 105 dB warning horn or softer 95 dBSiren alarm can be set to sound for 30 seconds, 3 minutes or indefinitely (unless disarmed with key supplied or until battery is drained)Includes a 9 V DC alkaline battery
Material
Clear Polycarbonate
Specifications Additional Eyelet Diameter
5/8 in
Specifications Application
Automated External Defibrillator (AED) | Polycarbonate Protection
Specifications Model Type
Polycarbonate Cover with Backplate, Wire Shelf, Thumb Lock and Siren Alarm
Specifications Warranty
3 y
Specifications Working Temperature
-40 to 250 ºF | -40 to 121 ºC
