STI-7561AH Metal Protective Enclosure
STI-7561AH Metal Protective Enclosure
SKU:STI-b83594
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-7561AH Metal Protective Enclosure
$49.99
Quantity: 1
Claim Your Seller Account
STI-7561AH Metal Protective Enclosure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

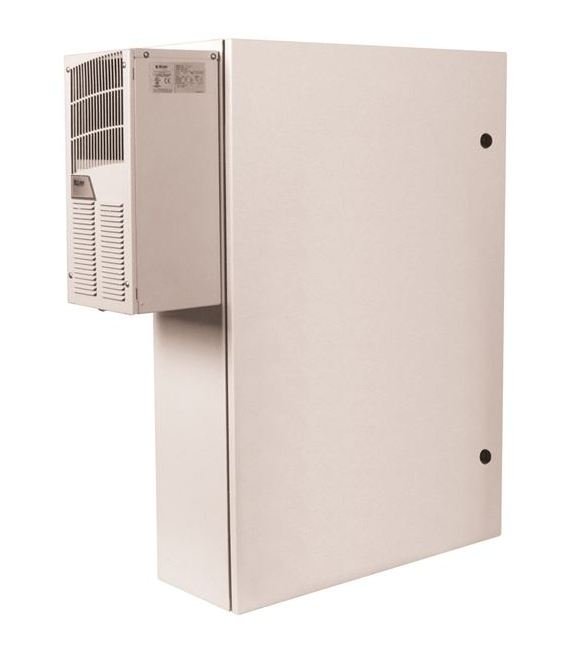

This AC/heated enclosure allows alarm control panels to be protected from extreme temperatures or other areas requiring UL Type 4 protection. The extra large, super tough, heavy-duty metal enclosure guards against vandalism, either accidental or intentional, as well as dirt, dust and grime. Its size allows the enclosure to house significantly sized electronic devices with space to spare. This UL Type 4 enclosure mounts to the wall enabling the units to be protected in their designated location. Unlike competitive models, this enclosure has a clear window allowing the unit within to be quickly identified (model without window available). Both the enclosure and AC/heater unit have a durable finish to help protect against corrosion. The enclosure has two 1/4" turn latches to help prevent unauthorized entry.
Product Specifications
Accessories
KIT-H18070 - Key-Lock Assembly
Air Conditioner Acheater Acheater Weight
27 lb | 12.25 kg
Air Conditioner Acheater Backplate Height
34 in | 864 mm
Air Conditioner Acheater Backplate Width
22 in | 559 mm
Air Conditioner Acheater Construction Of Air Conditioner Acheate
Steel with Baked Enamel FinishLow Ambient OperationAmbient Corrosion Resistant
Air Conditioner Acheater Current
3.6 A
Air Conditioner Acheater Frequency
60 Hz
Air Conditioner Acheater Frequency 1 Phase
50 Hz | 60 Hz
Air Conditioner Acheater Heater Height
15.75 in | 400 mm
Air Conditioner Acheater Heater Power
150 W
Air Conditioner Acheater Heater Width
6.35 in | 161 mm
Air Conditioner Acheater Operating Ac Voltage
115 V
Air Conditioner Acheater Operating Ac Voltage 1 Phase
240 V
Air Conditioner Acheater Output Energy
800 Btu
Approvals And Warranty Testing
It has been tested and approved by:Enclosure - UL TYPE 4AC/heater unit - UL Type 4CE (AC unit only)
Approvals And Warranty Warranty
2 y
Backplate Backplate Weight
23 lb | 10.43 kg
Backplate Construction Of Backplate
Steel 0.109 in. (2.8 mm) Thick Steel22 x 34 in. (559 x 864 mm)Baked Enamel Finish

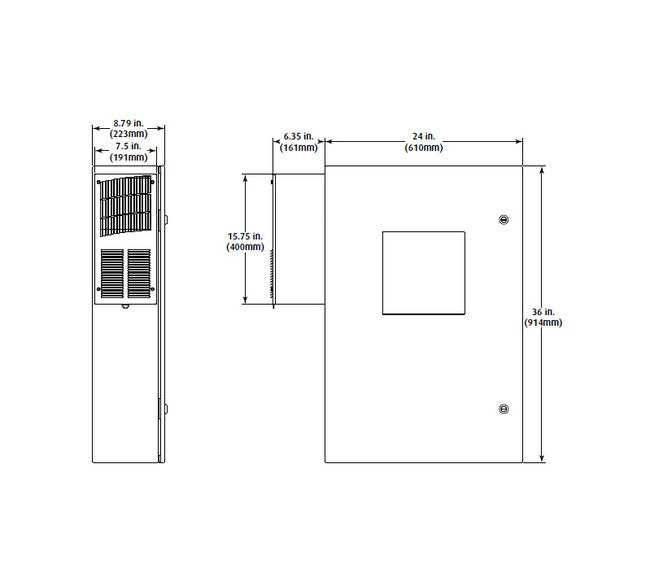

Dimensions Depth
8.79 in | 161 mm
Dimensions Height
36 in | 914 mm
Dimensions Width
24 in | 610 mm
Enclosure Construction Of Enclosure
14 gauge Steel with Baked Enamel Finish
Enclosure Enclosure Weight
47.5 lb | 21.55 kg
Housing Dimensions Unit Housing Depth
6 in | 152 mm
Housing Dimensions Unit Housing Height
33 in | 838 mm
Housing Dimensions Unit Housing Width
21 in | 533 mm
How It Works
To help maintain the correct range of operating temperatures, the AC/heater unit cycles as required and a fan runs continuously to sustain a uniform temperature inside the enclosure. The steel AC/heater is cost effective, low maintenance, is externally mounted to minimize space intrusion and has a low ambient operation package to help prevent it from freezing. This package allows the unit to work in cold temperatures without causing the AC/heater lines to freeze.
Key Features Construction
Has durable finish to help protect against corrosion.
Key Features Design
Heater unit is externally mounted to minimize space intrusion.
Key Features General Information
Protects fire alarm control panels and large electronic devices from extreme temperatures.Cost effective, low maintenance and compact design.Heavy-duty metal enclosure with AC/ heat.Clear window allows the unit within to be seen and quickly identified. Housing protects a unit up to 21 x 33 x 6 in. with proper air flow.The unit has two 1/4" turn latches to help prevent unauthorized entry.
Key Features Installation
Includes control panel mounting backplate.
Key Features Options
Models available with or without AC/heater and with or without window.
Note
Protects a unit up to 21 x 33 x 6 in. (533 x 838 x 152 mm) allowing proper air flow.
Specifications Application
Polycarbonate Protection
Specifications Model Type
Metal Protective Cabinet with Air Conditioner/Heat without Window
