STI-9780 Mounting Pedestal
STI-9780 Mounting Pedestal
SKU:STI-aa4628
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI-9780 Mounting Pedestal
$49.99
Quantity: 1
Claim Your Seller Account
STI-9780 Mounting Pedestal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

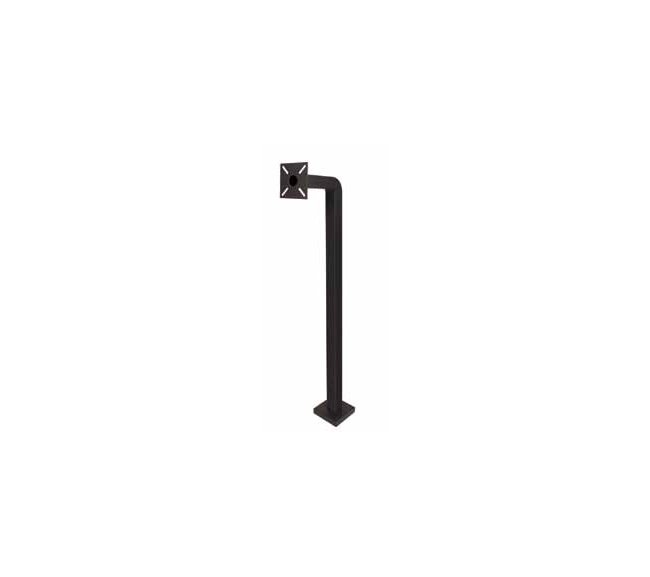

This pedestal helps provide convenience for security and/or access control equipment. The heavy gauge steel pedestal can be used for: access control, telephone entry, gate operators, parking control, card readers, push buttons/switches, intercoms, fire access stations, keypads and much more.The STI-9780 measures 42 inches (1067 mm) high and is designed with a base to mount to a concrete pad. This unit has a mounting flange cover plate which helps protect the four (4) mounting nuts from damage. The posts for both models measure 2 x 2 inches around.
Product Specifications
Accessories
KIT-318 : Adapter plate used for mounting "A", "B" or "F" back box to pedestal
Access Control Housing
STI-7515A - With "A" Back Box (allows 4.25" of depth)STI-7515F - With "F" Back Box (allows 2" of depth)

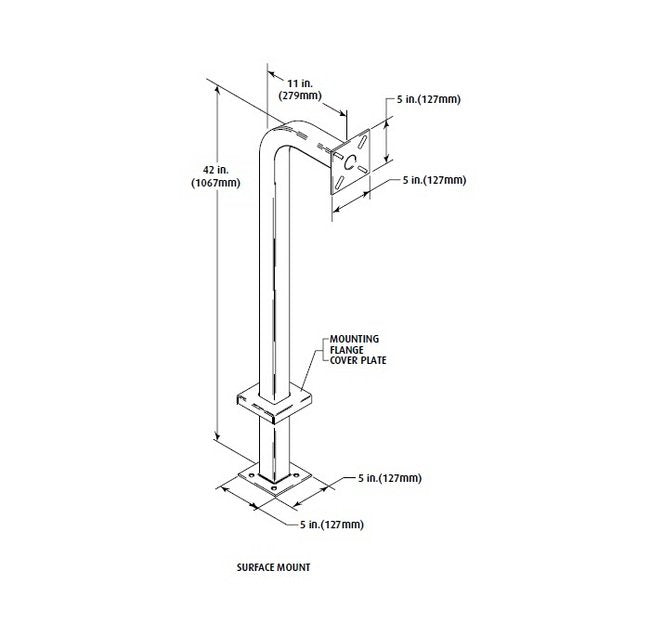

Dimensions Overall Height
42 in | 1067 mm
Dimensions Overall Width
11 in | 279 mm
Key Features Construction
Heavy gauge steel construction.Durable anti-corrosive polyester powder coat finish.
Key Features Design
Smooth radius bend.
Key Features General Information
Can be used with a variety of access control equipment.Provides convenience and security.
Key Features Installation
Mounting plate hole pattern supports a variety of appliances.
Key Features Options
Two models - surface and subsurface mount.
Specifications Application
Access Housing
Specifications Model Type
Mounting Pedestal, Surface mount
Specifications Upper Mount Height
5 in | 127 mm
Specifications Upper Mount Hole Diameter
1.5 in | 38 mm
Specifications Upper Mount Width
5 in | 127 mm
Specifications Warranty
1 y
Sti Covers That Mount To Pedestal
Polycarbonate EnclosureSTI-7500A : With Enclosed Deep Back Box, Interior Key LockSTI-7500B : With Enclosed Back Box and Double-Gang Electrical Box, Interior Key LockSTI-7500F : With Enclosed Back Box, Interior Key LockSTI-7501A : With Enclosed Deep Back Box, Interior ThumbSTI-7501B : With Enclosed Back Box and Double-Gang Electrical Box, Interior Thumb LockSTI-7501F : With Enclosed Back Box, Interior Thumb LockSTI-7510A : With Enclosed Deep Back Box, Exterior Key LockSTI-7510B : With Enclosed Back Box and Double-Gang Electrical Box, Exterior Key LockSTI-7510F : With Enclosed Back Box, Exterior Key LockSTI-7511A : With Enclosed Deep Back Box, Exterior Thumb LockSTI-7511B : With Enclosed Back Box and Double-Gang Electrical Box, Exterior Thumb LockSTI-7501F : With Enclosed Back Box, Exterior Thumb Lock
