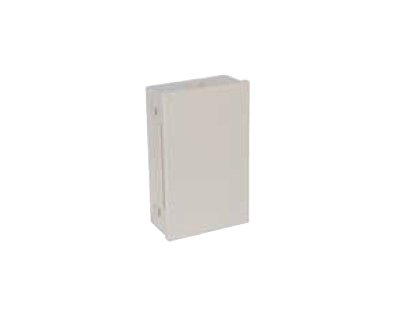

These enclosures for electrical and electronic equipment (up to 1000 V) provide personal protection from hazardous parts and provides a degree of protection to enclosed equipment. EM models are constructed for indoor use. All enclosures offer protection against vandalism, either accidental or intentional. The size allows the enclosures to house significantly sized electronic devices with space to spare. Enclosures mount to the wall enabling units to be protected in their designated location. They have a durable finish to help protect against corrosion.
Product Specifications
Accessories
KL544 - Key lockTL644 - Thumb lockSTI-MBP0506 - 14 gauge backplate for STI-EM07123.5 and STI-EM08073.5 (Includes a top or bottom plate mount option)KIT-H18019 - Standoff Kit for MBPs, qty. 6
Approvals And Warranty Testing
UL, cUL Listed, Type 1
Dimensions Depth
3.84 in | 98 mm
Dimensions Height
12.20 in | 310 mm
Dimensions Width
7.73 in | 196 mm
Key Features Construction
Heavy-duty enclosures are constructed with a powder coated metal to help protect against corrosion.Metal thickness meets or exceeds Type 1 requirements.
Key Features Design
Cost effective, low maintenance and compact design.Continuous piano type hinge.
Key Features General Information
Can be used in all wiring applications as a junction, splice or power supply cabinet
Key Features Installation
Enclosures mount to the wall enabling units to be protected in their designated location.
Key Features Options
Thumb or key lock (option sold separately).EM Models:Backplate (sold separately) may be mounted into cabinet.Back design helps accommodate uneven walls or mounting surface.Top, side and bottom knockouts are 1/2 Inch (in) and 3/4 Inch (in).UL, cUL Listed, Type 1 (see approvals)7560/7561 Models:UL Listed, Type 4.Includes backplate and two 1/4 turn latches.
Material
Heavy-duty enclosures are constructed with a powder coated metal to help protect against corrosion
Specifications Application
Polycarbonate Protection
Specifications Model Type
Metal Protective Cabinet 18 Gauge
