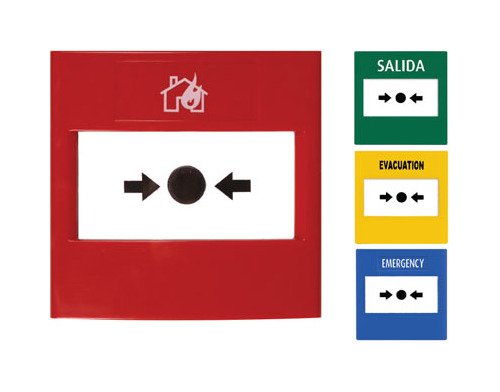

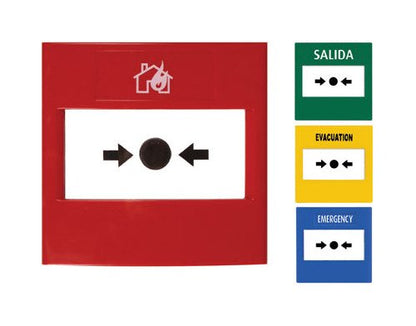

The ‘ReSet’ is a unique switch that mimics the feel of breaking glass while offering the user the benefits and environmental advantages of a resettable operating element. The ‘ReSet’ uses a simple yet ingenious patented mechanism which consists of a rigid plastic operating element and an over center spring mechanism. This arrangement provides real action upon operation and simulates break glass activation. An activation indicator drops into view at the top of the window after the ‘ReSet’ has been operated. The unit is then simply reset with a key and is again ready for use.
Product Specifications

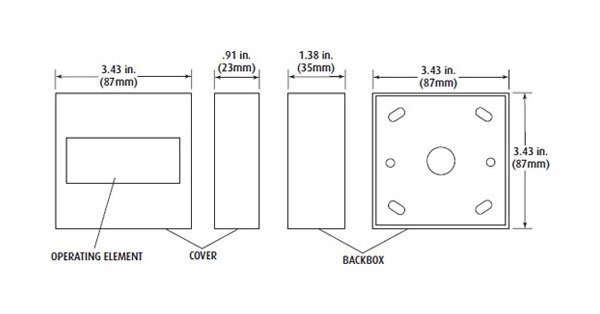

Dimensions Overall Height
3.43 in | 87 mm
Dimensions Overall Width
3.43 in | 87 mm
Features
Glass appearance maintains operator deterrence. | Low profile, heavy-duty terminations - Two built-in resistor values. | Positive activation that mimics the feel of breaking glass. | Simple key to reset operating element - no broken glass. | Visible warning flag confirms activation.
Key Features Options
Available in five colors. | Double pole version available.
Mounting
Flush Mount | Flush or Surface with Back Box | Surface Mount
Specifications Ac Current Rating Series 02 And 11 At 125 To 250
3 A | 125 to 250 V
Specifications Color
Blue | Green | Red | White | Yellow
Specifications Color Options
Blue | Green | Red | White | Yellow
Specifications Cover Options
Call Point Stopper® (STI-6930 or STI-6931) | Integral cover | Mini Stopper II with Horn (STI-6600 or STI-6605) | Mini Stopper II® without Horn (STI-6540 or STI-6545) | Mini Stopper® (STI-6830 or STI-6831) | Mini Weather Stopper® (STI-6525 or STI-6535) | No cover
Specifications Direct Current Dc Current Rating All Series At 12
3 A
Specifications Electrical Contact Material
Silver Plated Brass
Specifications Housing And Mounting Box Material
Polycarbonate
Specifications Installation Terminal Conductor Size
0.5 to 2.5 mm
Specifications Low Current Rating All Series At 5 To 12 Volts V
1 to 100 mA | 5 to 12 V
Specifications Operating Temperature
-20 to 65 ºC | -4 to 149 ºF
Specifications Overall Depth Back Box
1.38 in | 35 mm
Specifications Overall Depth Cover
0.91 in | 23 mm
Specifications Prefix
RP
Specifications Red Only Certification
EN54-11, Cert No. 653a/02 for Red Series 01 only
Specifications Series And Electrical Arrangement
Conventional fire model includes two resistor values 470 & 680 ohms | Double Pole Changeover | Single Pole Changeover
