STI Universal Touch Free Proximity Sensing Switches
STI Universal Touch Free Proximity Sensing Switches
SKU:STI-3dffca
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
STI Universal Touch Free Proximity Sensing Switches
$49.99
Quantity: 1
Claim Your Seller Account
STI Universal Touch Free Proximity Sensing Switches
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

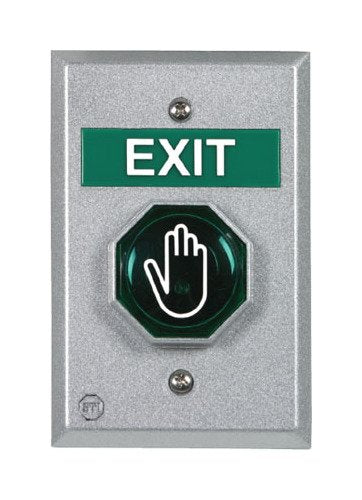

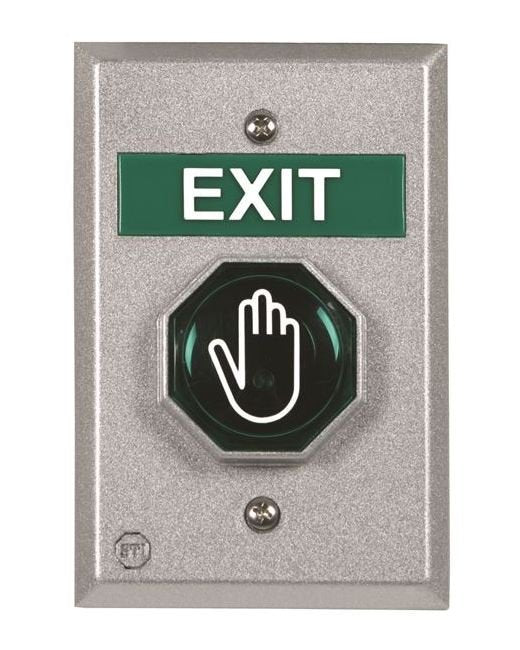

This Touch Free button applies NoTouch® technology which helps eliminate the spread of germs in medical facilities or high traffic areas. To exit, a person must simply wave their hand in front of the device. The infrared will pick up the motion and unlatch the time adjustable door. Universal Touch Free Button offers many different combinations for the price of a standard one configuration button. Eliminating the need to stock dozens of push buttons, and wasting precious time and money tracking down just the right button for a customer. UB-1TF is ready to be assembled out of box and is easily installed within minutes right on site. The faceplate is constructed of cast aluminum metal, allowing it to take tough knocks in stride, and is slightly oversized to cover old plate installation marks. Button package includes: faceplate, three illuminated push buttons and seven changeable illuminated activation messages.
Product Specifications
Accessories
UB-1CL - Color (Custom Label applied to blank, changeable message plates (blue, green, white or yellow))KIT-71102A-Color - Color Match Back Box Kit (red, blue, green, white or yellow)STI-6518 - (Bopper Stopper® Protective Cover)

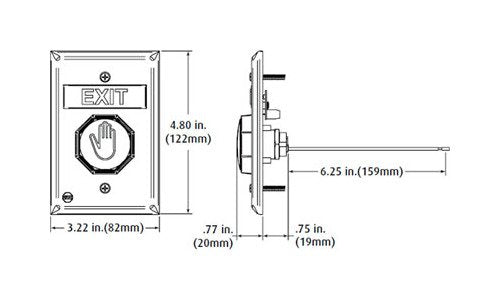

Dimensions Overall Depth
7.77 in | 198 mm
Dimensions Overall Height
4.8 in | 122 mm
Dimensions Overall Width
3.22 in | 82 mm
Features
Helps reduce the spread of germs. | Ideal for medical facilities or high traffic areas. | One year guarantee on electromechanical and electronic components. | Sensor life of 100,000 hours.
How It Works
The installer simply has to choose which lens cover and interchangeable message plate works best for the customers need, and easily snap them in place. This allows the button to be mounted in a matter of minutes instead of waiting weeks for a specific button to be ordered and delivered.
Key Features Options
Three different lens covers: red, blue, green.
Specifications Adjustable Latch Time
0.5 to 20 s
Specifications Adjustable Proximity Range
0.4 to 4 in | 1 to 10 mm
Specifications Operating Direct Current Dc Voltage 15
12 V
Specifications Operating Temperature
-4 to 158 ºF
Specifications Overall Probe Length
6.25 in | 159 mm
Specifications Technology Used
NoTouch®
Specifications Warranty
1 y
