The highly effective Exit Stopper® can serve as an inexpensive security device and help stop theft by alerting you to any unauthorized exits or entries through emergency exit doors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories
KIT-E06402: Magnet and reed switch with spacersKIT-L16200: Warning Door Alarmed" labelKIT-6403: Remote horn to use in conjunction with all above exit alarm modelsSTI-V34104: 4-Channel Voice ReceiverSTI-34108: 8-Channel Receiver"
Approvals And Warranty Testing
Federal Communications Commission (FCC) and Industry Canada (IC) CompliantEuropean Conformity (CE) Approved
Approvals And Warranty Warranty
3 y
Dimensions Overall Depth
2 in | 51 mm
Dimensions Overall Height
5.375 in | 137 mm
Dimensions Overall Width
5.375 in | 137 mm
Features
Three year guarantee against breakage of polycarbonate in normal use (one year on electromechanical and electronic components).Alarm alerts to any unauthorized exits/entries through emergency exit doors and rear doors.User can select whether to use as an alarm or annunciator.105 or 95 dB warning horn.Detects both unauthorized exits and entries.Wireless Available
How It Works
If the protected door is opened, the electronic Exit Stopper® emits an ear piercing alarm for 30 seconds, 3 minutes or continuously (as preset by the user). A key operated override will silence the alarm and allow authorized exits. The unit can be set for a 15 second delay before arming or tripping. Exit Stopper® “Always Active” allows the key holder to reset the alarm, but does not allow the alarm to be turned off. Exit Stopper® is fitted with a 9 VDC alkaline battery. It is available in red or green for almost any type of door, mounting or installation, including remote placement of the alarm (not for outdoor use).
Key Features Construction
Virtually indestructible polycarbonate housing.
Key Features Design

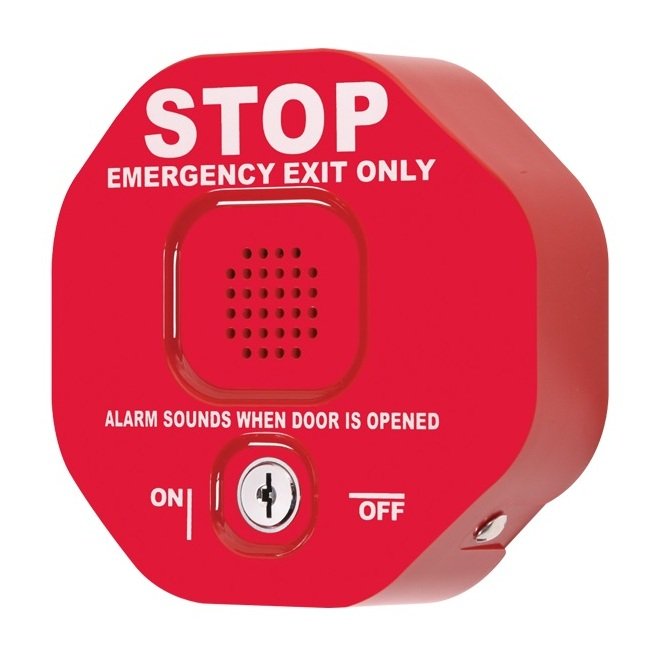

Highly visible "stop sign" design acts as a deterrent.
Key Features Electronics
In exit alarm mode, alarm can be set to sound for 30 seconds, 3 minutes or indefinitely (unless disarmed with key supplied or until battery is drained).In annunciator mode, it announces door entry with a set of 10 beeps.May be programmed for 15 second entry delay or immediate alarm.Arming delay allows unit to arm following authorized exits.
Key Features Installation
May be mounted on top, right, left or next to almost any door.Recommended operational temperature range is 32 º to 113 ºF .Not for outdoor use.Unit is completely self-contained.Easy to install...much less expensive than heavy horizontal bar type units...and practical for all emergency doors.
Key Features Options
Available in red or green.STI-V6400WIR4 supervised wireless 433 MHz (with 4-Channel Voice Receiver). Up to 1000 foot (line of sight) range.
Specifications Alarm Current
200 mA
Specifications Application
Theft Prevention
Specifications High Volume Warning Horn At 1 Foot Ft
105 dB
Specifications Housing Dimension
1/8 in
Specifications Housing Material
Polycarbonate
Specifications Low Volume Warning Horn At 1 Foot Ft
95 dB
Specifications Model Type
Wireless Exit Stopper® Multifunction Door Alarm with 4-channel Voice Receiver
Specifications Operating Temperature
0 to 45 ºC | 32 to 113 ºF
Specifications Power Source
12 to 24 Volts (V) DC Wired | 9 Volts (V) DC Alkaline Battery
Specifications Relay Contacts
Form C Dry 0-30 Volts (V) AC/DC, 1 Ampere (A)
Specifications Standby Current
10 µA
User Programmable Features
105 Decibel (dB) High Volume for Warning Horn at 1 Foot: ON (Factory Settings) (JP2 - Alarm Volume Switch)95 Decibel (dB) Low Volume for Warning Horn at 1 Foot: OFF (JP2 - Alarm Volume Switch)Duration- 30 Second Alarm: OFF (Factory Settings) (JP3 - Alarm Duration Switch)Duration- 180 Second Alarm: OFF (JP3 - Alarm Duration Switch)Duration- Continuous Alarm: ON (JP3 - Alarm Duration Switch)Duration- Annunciator Mode: ON (JP3 - Alarm Duration Switch)Duration- 30 Second Alarm: OFF (Factory Settings) (JP4 - Alarm Duration Switch)Duration- 180 Second Alarm: OFF (JP4 - Alarm Duration Switch)Duration- Continuous Alarm: ON (JP4 - Alarm Duration Switch)Duration- Annunciator Mode: ON (JP4 - Alarm Duration Switch)Trip- Immediate: OFF (Factory Settings) (JP5 - Trip Delay Switch)Door Prop Mode: ON (JP5 - Trip Delay Switch)Arming- Immediate: ON (Factory Settings) (JP7 - Arming Switch)Arming- 15 Second Delay: OFF (JP7 - Arming Switch)
