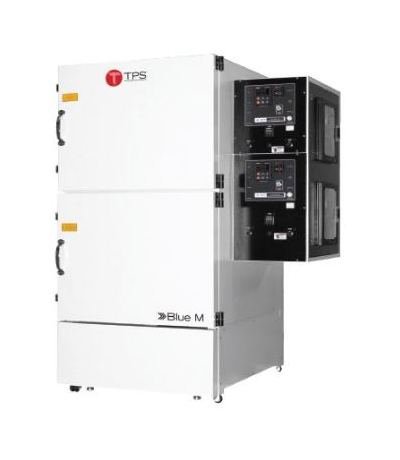

Blue M stacked industrial ovens have earned a long-standing reputation for exceptional performance, long service life and ease of operation over a broad range of applications. The STL series integrally stacked Blue M mechanical convection oven is suitable for curing, drying, and baking in semiconductor, electronic, and many other industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ac Voltage
208 V | 240 V | 480 V
Specifications Engineered Oven Options
5-point thermocouple survey | All stainless steel exterior construction | Class 1000 clean room assembly and packaging | Customer specified options as factory proposed and authorized | Door interlocks | Filtered process air/atmosphere intake | Lead-in pipes | N2 low-flow switch alarm | N2 low-pressure switch alarm | Redundant over-temperature protection | Reverse door hinges | Special control systems | Temp. deviation alarms
Specifications Exterior Depth
49 in | 1245 mm
Specifications Exterior Height
74 in | 1880 mm
Specifications Exterior Width
52.3 in | 1328 mm
Specifications Frequency
60 Hz
Specifications General Specifications
Uniformity: ± 1% of setpoint | Control Accuracy: +0.5°C | Resolution: ± 0.1°C | Temperature range: 15°C above ambient to 343°C (650°F)
Specifications Interior Depth
20 in | 508 mm
Specifications Interior Height
20 in | 508 mm
Specifications Interior Volume
5.8 ft³
Specifications Interior Volume Per Oven
164 L
Specifications Interior Width
25 in | 635 mm
Specifications Line Current Per 208 Volts V At 1 Phase Per Oven
25 A
Specifications Line Current Per 208 Volts V At 3 Phase Per Oven
24 A
Specifications Line Current Per 240 Volts V At 1 Phase Per Oven
29 A
Specifications Line Current Per 240 Volts V At 3 Phase Per Oven
31 A
Specifications Line Current Per 480 Volts V At 3 Phase Per Oven
16 A
Specifications Machine Footprint
17.75 ft² | 1.65 m²
Specifications Model
STL-05 Stacked Oven
Specifications Rated Power Per 208 Volts V At 1 Phase
4.2 kW
Specifications Rated Power Per 208 Volts V At 3 Phase
9 kW
Specifications Rated Power Per 240 Volts V At 1 Phase
6 kW
Specifications Rated Power Per 240 Volts V At 3 Phase
12 kW
Specifications Rated Power Per 480 Volts V At 3 Phase
12 kW
Specifications Stl 05 Oven Options
24-hour, 7-day digital process timer | Circular or strip chart recorder | Dry box oven with N2 gas system | Emergency power off switch (EMO) | Light tower | NIST traceable certificate of calibration | RS232/RS485 communications converter | Spec View data acquisition software
