Stock Bandpass Filter for Optical Instruments - SO-BP-FIL-EI12C-0029

Name: Stock Bandpass Filter for Optical Instruments - SO-BP-FIL-EI12C-0029
Brand: Shanghai Optics
SKU: STO-685018
Price: 49.99 USD
Availability: OutOfStock

SKU:STO-685018

High-performance Stock Bandpass Filter for precise optical filtering and superior transmission rates.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

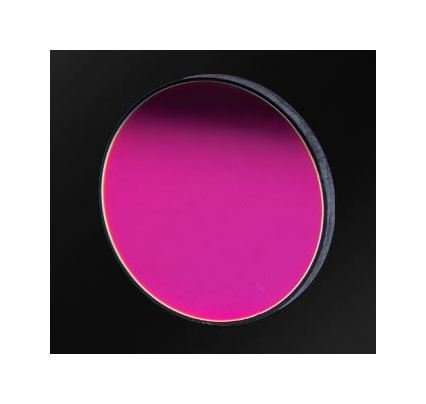

The SO-BP-FIL-EI12C-0029 Stock Bandpass Filter is a high-performance optical instrument accessory suitable for various applications. With a center wavelength range of 480 nm, 660 nm, and 880 nm, this filter provides precise optical filtering capabilities. It features a narrow Full Width Half Maximum (FWHM) of 10 nm with a tight tolerance of +/- 2 nm, ensuring accurate wavelength selection. The filter offers exceptional transmission rates above 45% to 50% at the respective center wavelengths, guaranteeing superior optical clarity. Additionally, its blocking properties reaching OD4 at 200 to 3500 nm make it ideal for controlling unwanted light interference. This filter is designed to meet the stringent requirements of institutional and government procurement standards, ensuring reliability and performance consistency.

Product Specifications

Specifications Blocking

OD4 @ 200 ~ 3500 nm

Specifications Center Wavelength

480 nm | 660 nm | 880 nm

Specifications Cw Tolerance

+/- 2 nm

Specifications Fwhm

10 nm

Specifications Fwhm Tolerance

+/- 2 nm

Specifications Transmission Cwl

>45 % | >50 %
