Stock F-Theta Lens 100mm for Laser Scanning Systems

Stock F-Theta Lens 100mm for Laser Scanning Systems

SKU:STO-fd02aa

High-performance Stock F-Theta Lens for precise laser scanning. Compliant with institutional standards.

Regular price $499.99
Regular price Sale price $499.99
Sale

Initiate Order

Stock F-Theta Lens 100mm for Laser Scanning Systems

Stock F-Theta Lens 100mm for Laser Scanning Systems

$499.99

Quantity: 1

Claim Your Seller Account

Stock F-Theta Lens 100mm for Laser Scanning Systems

Stock F-Theta Lens 100mm for Laser Scanning Systems

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

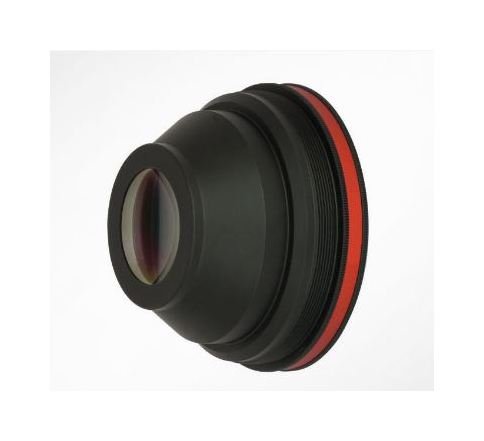

The SO-FT-036-100 Stock F-Theta Lens is a precision optical component designed for laser scanning applications. With a Wavelength of 532 nm and an Effective Focal Length of 100mm, this lens delivers high-quality imaging with a Scanning Width of 36x36mm and a Telecentric Angle of 1.2. It is built to meet the stringent requirements of institutional buyers, offering a Pupil Diameter of 16mm and a Working Distance of 114.66mm for enhanced accuracy and performance. The lens is compliant with Federal/DoD procurement standards, ensuring reliability and quality for government applications.

Product Specifications

Specifications Effective Focal Length
100 mm
Specifications Flange Distance
160.09 mm
Specifications Focal Spot Diameter
6.0-6.2
Specifications M1 M2 Distance
13.69 mm
Specifications M2 Lens Center
24 mm
Specifications M2 Threaded End
60.07 mm
Specifications Mounting Threads
M55×1/M85×1
Specifications Pupil Diameter
16 mm
Specifications Scanning Width
36*36 mm
Specifications Scan Field
±14.6 mm
Specifications Telecentric Angle
1.2
Specifications Wavelength
532 nm
Specifications Working Distance
114.66 mm
