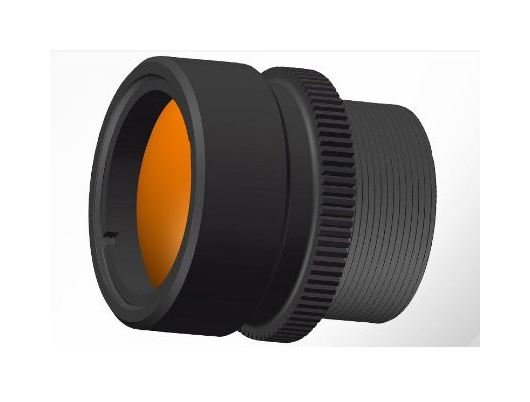

Stock LWIR Lens 11mm F/1
Stock LWIR Lens 11mm F/1
SKU:STO-98ceb9
Enhance thermal imaging with the precision-engineered Stock LWIR Lens 11mm F/1. Ideal for diverse applications with manual focus control and 8-12 µm working band.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Stock LWIR Lens 11mm F/1
$289.99
Quantity: 1
Claim Your Seller Account
Stock LWIR Lens 11mm F/1
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-LWIR-110-10 Stock Long-Wave Infrared (LWIR) Lens is a precision-engineered optical solution suitable for a wide range of applications in thermal imaging. With a focal length of 11mm and an F-number of 1, this lens delivers exceptional image quality with a field of view of 20°(H)x15°(V) for 160x120 detectors and 49.9°(H)x38.4°(V) for 640x480 detectors. The manual focus control and working band of 8-12 µm ensure versatile performance in various thermal imaging scenarios. Designed with a mount of M34x0.75, this lens offers a back working distance of 16mm for 160x120 detectors and 17.5mm for 640x480 detectors, making it a reliable choice for professionals seeking high-quality LWIR imaging equipment.
Product Specifications
Specifications Back Working Distance
16 mm | 17.5 mm
Specifications Detector
160Ã120-17 µm | 640Ã480-17 µm
Specifications Field Of View
20°(H)x15°(V) | 49.9°(H)x38.4°(V)
Specifications Focal Length
11 mm
Specifications Focus Control
Manual
Specifications F Number
1
Specifications Mount
M34x0.75
Specifications Working Band
8-12 µm
