Stock LWIR Lens F5mm F1.2
Stock LWIR Lens F5mm F1.2
SKU:STO-730478
Enhance thermal imaging with the SO-LWIR-050-12 Stock LWIR Lens. F5mm, F1.2, 8-12µm, 30.4°FOV. Ideal for precision thermal solutions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Stock LWIR Lens F5mm F1.2
$129.99
Quantity: 1
Claim Your Seller Account
Stock LWIR Lens F5mm F1.2
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

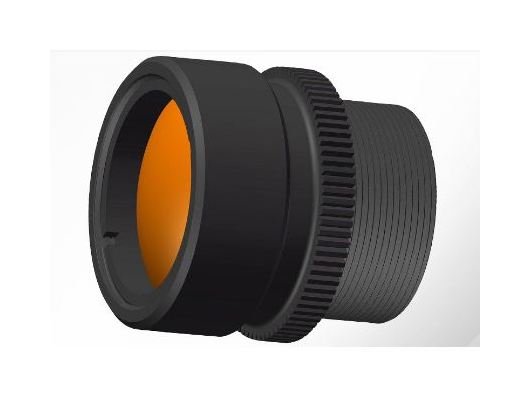

The SO-LWIR-050-12 Stock Long-Wave Infrared (LWIR) Lens offers exceptional performance for thermal imaging applications. With a precise Focal Length of 5mm, F-Number of 1.2, and an ample Field of View of 30.4°(H)x23°(V), this lens delivers clear and detailed thermal images within the 8-12 µm Working Band. Designed with a Fixed Focus Control and a sturdy Mount in M18x0.5/ M14x0.5, this lens ensures ease of installation and reliable operation. The Back Working Distance of 13.5mm and compatibility with a 160×120-17 µm Detector make it a versatile choice for various infrared imaging systems.
Product Specifications
Specifications Back Working Distance
13.5 mm
Specifications Detector
160Ã120-17 µm
Specifications Field Of View
30.4°(H)x23°(V)
Specifications Focal Length
5 mm
Specifications Focus Control
Fixed
Specifications F Number
1.2
Specifications Mount
M18x0.5/ M14x0.5
Specifications Working Band
8-12 µm
