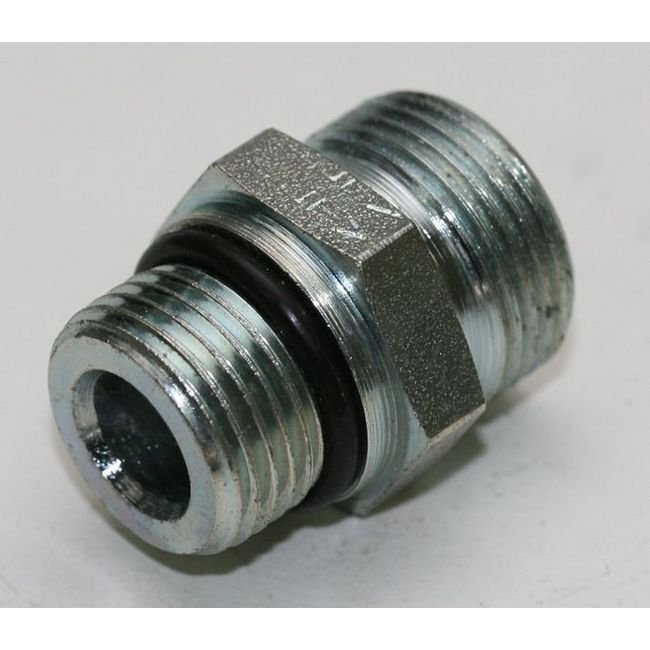

Straight Male Stud Coupling with O-Ring Thread UNF/UN-2A

Name: Straight Male Stud Coupling with O-Ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-0524fc
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-0524fc

High-quality Straight Male Stud Coupling for reliable and leak-free connections in industrial applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Straight Male Stud Coupling with O-Ring Thread UNF/UN-2A is designed for light-duty applications with a pressure rating of 315 bar. Constructed from durable carbon steel, this fitting ensures reliable performance. Compliant with DIN 2353 standards, it features precise dimensions suitable for tube diameters of 18.0 mm. With its compact design and advanced sealing capabilities, this coupling ensures leak-free connections, making it ideal for a wide range of industrial settings.

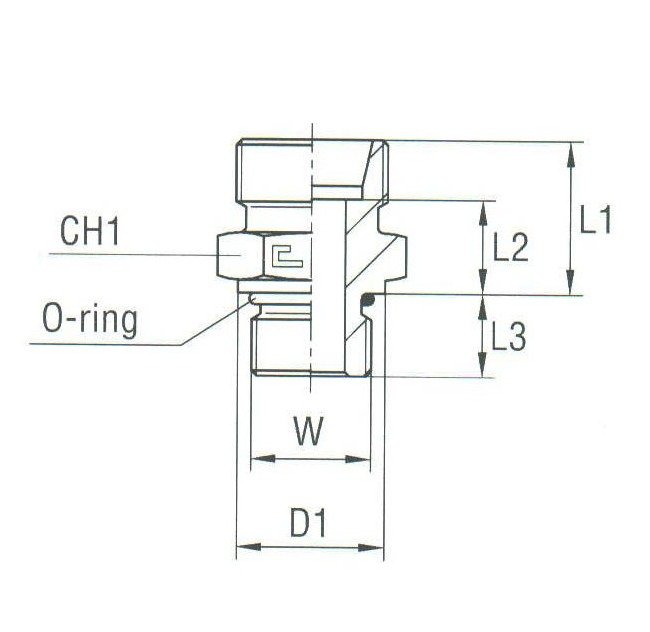

Product Specifications

Specifications Ch1

27 mm

Specifications D1

21.8 mm

Specifications L1

21.9 mm

Specifications L2

14.4 mm

Specifications L3

11.1 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm

Specifications W Thread Size

3/4-16
