Straight Thread Flanged Plastic Cap - 1" Standard Size

Name: Straight Thread Flanged Plastic Cap - 1" Standard Size
Brand: MOCAP LLC
SKU: FLA-a7ac6b
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-a7ac6b

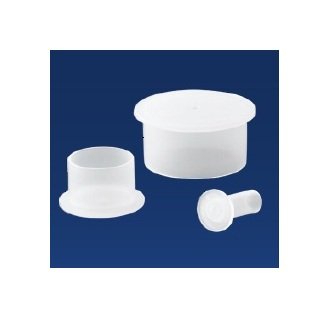

Protect standard 1" straight threads with durable polyethylene Flanged Plastic Caps by MOCAP. Remove easily for efficient assembly. RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance thread protection with MOCAP FCS Series Flanged Plastic Caps for Standard Straight Threads. Crafted from durable polyethylene, these caps guarantee a secure fit for 1-inch threads and feature an easy-to-assemble flange design for quick removal. With RoHS compliance and various sizing options available, these caps are ideal for thread protection and end cap applications in industrial settings.

Product Specifications

Features 0

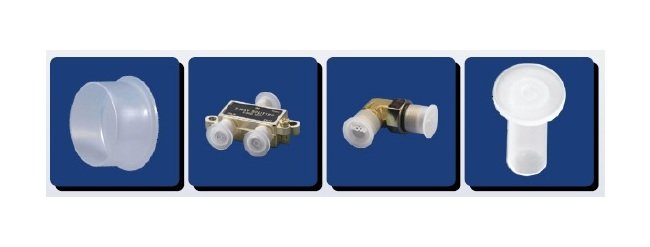

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings

Manufacturing Notes 0

MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

3000

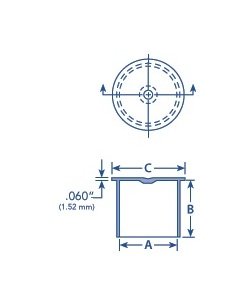

Specifications Flange Outer Diameter Dimension C

1.250 in | 31.8 mm

Specifications Flange Thickness

0.060 in | 1.52 mm

Specifications Inside Diameter Dimension A

0.990 in | 25.1 mm

Specifications Inside Length Dimension B

0.660 in | 16.8 mm

Specifications Material

Polyethylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

600

Specifications Standards

RoHS Compliant

Specifications To Fit Standard Thread Size

1 in
