Strainsert SXA Series Hex Head Cap Screws
Strainsert SXA Series Hex Head Cap Screws
SKU:FOR-acca69
Precision-engineered force sensing hex head cap screws for accurate bolt tension measurement and uniform tightening. Enhance structural integrity and reliability with precise calibration.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Strainsert SXA Series Hex Head Cap Screws
$59.99
Quantity: 1
Claim Your Seller Account
Strainsert SXA Series Hex Head Cap Screws
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Strainsert SXA Series Hex Head Cap Screws are precision-engineered force sensing bolts designed to measure accurate preload, service load, and overload in bolted assemblies. Made from durable Aluminum Alloy 2024-T4 with a Rockwell B54 Minimum hardness, these cap screws offer a high Ultimate Tensile Strength of 55,000 psi minimum and 60,000 psi average, ensuring reliability and efficiency in various applications. Their Class 2A rolled threads and unique internal gaging method provide precise calibration and monitoring of bolt tension, enhancing structural integrity and assembly reliability. Ideal for research, testing, and manufacturing, these cap screws guarantee uniform tightening within 1% of induced load, promoting secure and consistent bolted connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Information 0

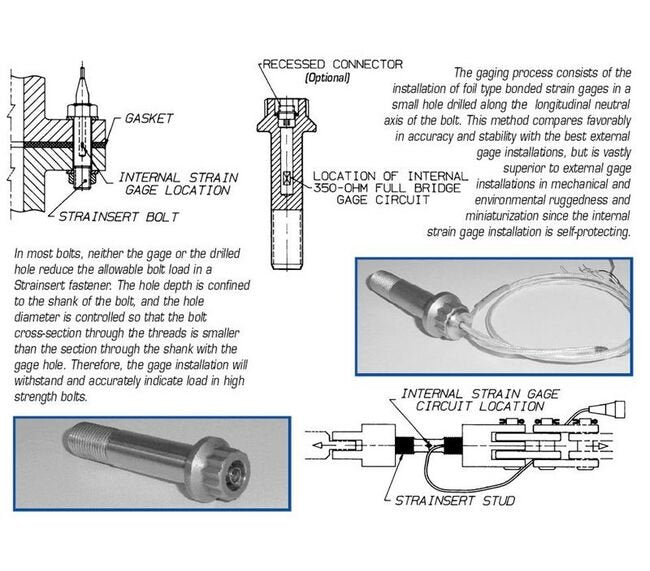

Strainsert fasteners utilize an exclusive internal gaging method (U.S. Patent #2;,873,341) to indicate bolt tension due to preload and subsequent service loads with strain gage accuracy. They are the first fasteners to provide a means for accurate, independent inspection of an assembled bolt for preload, thereby enhancing the structural integrity and reliability of both the bolt and the assembly. Feature Measurement of preload induced in fasteners Accurate tightening of fasteners within 1% of induced load Uniform tightening of fasteners in a bolt pattern
Performance Specs Bridge Resistance Nominal
120 Ω | 350 Ω (Standard)
Performance Specs Configuration
Full Bridge Strain Gage Circuit (Standard)
Performance Specs Excitation
350-ohm (Standard) FB: 12V (Maximum)120-ohm FB: 3V (Maximum)
Performance Specs Gages Type
Metal Foil
Performance Specs Gage Factor Nominal
2.00
Performance Specs Non Linearity
±1% of Allowable Load
Performance Specs Non Repetition
±0.1% FS
Performance Specs Output Signal Nominal
FB: 3.0 mv/V, approx.
Performance Specs Service Temperature
150°F (Standard) | 250°F (Max.)
Specifications Calibration
Load & Unload Calibration | Load Only Calibration (Standard)
Specifications Hardness
Rockwell B54 Minimum
Specifications Material
Aluminum Alloy, 2024-T4
Specifications Threads
Class 2A, rolled
Specifications Thread Length
2-diameters + 1/4 inch full threads + 3/16 inch maximum imperfect threads.
Specifications Ultimate Tensile Strength
55,000 psi Minimum; 60,000 psi average
