StrainSmart Data Acquisition System 8000
StrainSmart Data Acquisition System 8000
SKU:STR-67ff32
High-precision data acquisition system with 8 channels, RJ45 connectors, and 1000 S/s scanning rate for accurate measurements.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
StrainSmart Data Acquisition System 8000
$1,899.99
Quantity: 1
Claim Your Seller Account
StrainSmart Data Acquisition System 8000
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

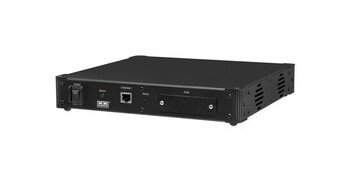

The StrainSmart Data Acquisition System 8000 by Micro-Measurements is a high-precision instrument designed for both static and dynamic test and measurement applications. This versatile system features eight software-selectable input channels, supporting strain gauges, thermocouples, and high-level voltage signals. With RJ45 input connectors for each channel and scanning rates up to 1000 samples per second, it offers exceptional data acquisition capabilities. The compact size, ruggedized enclosure, Ethernet network architecture, and optional self-calibration functionality make it ideal for demanding environments requiring accuracy and reliability.
Product Specifications
Ordering Information Ordering Information
8000 Calibration Card (Optional) A123 - System Voltage Calibration (VCAL) Card | 8000 Scanner Enclosure 8000-8-SM - 8-Channel Compact Ruggedized Scanner
Specifications Ad Converter
24 bit Delta-Sigma
Specifications Bridge Completion
120 Ohm, 350 Ohm, 1000 Ohm, internal HB 1K Ohm
Specifications Bridge Types
¼ , ½ , Full Bridge
Specifications Connection
RJ45
Specifications Data Rate
Up to 1000 S/s
Specifications Excitation
High Level: 0-11.997 VDC | Strain Gage: 0-10 VDC (SW Selectable)
Specifications Input Type
Strain, High-level, LVDT, Thermocouple (Type selected by software)
Specifications Max Channels Multiple Units
128 (not synchronized)
Specifications Max Input
±155 mV/V @ GF = 2.0
Specifications Max Storage
PC dependent
Specifications Measurement Range
25,000 - 310,000 µm/m @ GF=2.00
Specifications Power
11-32 VDC, 5 A max, or Main power supply
Specifications Resolution
0.5µm/m @ GF=2.00
Specifications Self Calibration
Yes â with VCAL Module (Optional)
Specifications Software
StrainSmart 8000 Labview, .NET API
