Strap End Type I - Military Specification NAS 1435-E, NAS 1435-K

Name: Strap End Type I - Military Specification NAS 1435-E, NAS 1435-K
Brand: Lexco Cable Manufacturing
SKU: MIL-b46f3c
Price: 14.99 USD
Availability: OutOfStock

SKU:MIL-b46f3c

High-quality Strap End Type I for wire ropes or aircraft cables, meets military specs NAS 1435-E, NAS 1435-K.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Strap End Type I is expertly designed for secure crimping onto wire ropes or aircraft cables. Meeting military specifications NAS 1435-E and NAS 1435-K, this durable strap end offers precise dimensions (A: .32, B: .75, C: .16) and features like a 5/16 ball size. Ensure reliable attachment and compliance with stringent standards with this top-quality product.

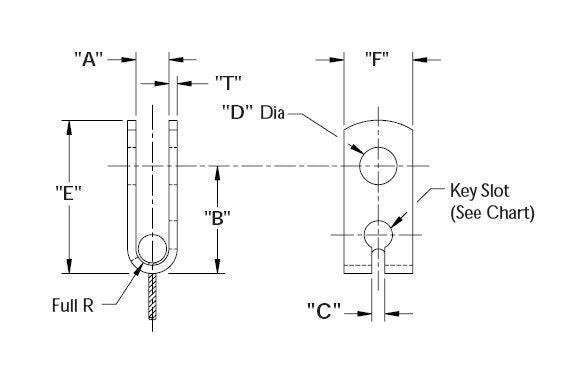

Product Specifications

Specifications A

.32

Specifications B

.75

Specifications Ball Size

5/16

Specifications C

.16

Specifications D

.281

Specifications E

1.00

Specifications F

.62

Specifications Key Hole Slot

Specifications T

.059

CAGE

0T9L4

NAICS

332510

PSC

4030
