Stronghold 1/2 Inch Carbon Steel USS Flat Washer - Plain Finish
Stronghold 1/2 Inch Carbon Steel USS Flat Washer - Plain Finish
SKU:STA-6351ae
High-quality 1/2 Inch Carbon Steel USS Flat Washer in Plain Finish for secure fastening tasks.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Stronghold 1/2 Inch Carbon Steel USS Flat Washer - Plain Finish
$12.99
Quantity: 1
Claim Your Seller Account
Stronghold 1/2 Inch Carbon Steel USS Flat Washer - Plain Finish
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stronghold 1/2 Inch Carbon Steel USS Flat Washer in Plain Finish is a durable and reliable hardware essential for various industrial applications. This wide series washer is constructed from high-quality carbon steel, providing superior strength and resistance. With a weight of 3.85 lb per piece, it ensures stability and security in fastening tasks. Meeting stringent industry standards, this flat washer guarantees optimal performance and longevity.
Product Specifications

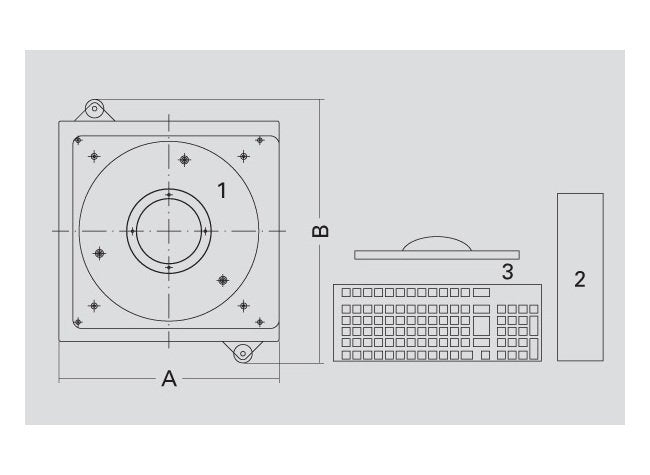

Machine Depth B
390 mm
Machine Height C
120 mm
Machine Note For Dimensions
Data non-binding, depending on respective equipment 44
Machine Width A
480 mm
Power Supply Frequency
50 Hz
Power Supply Voltage
230 V
Range Of Application Range Of Application

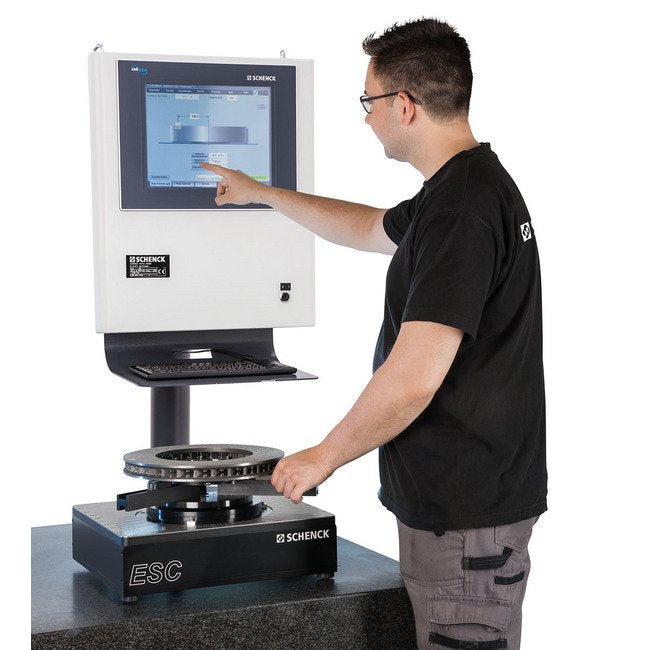

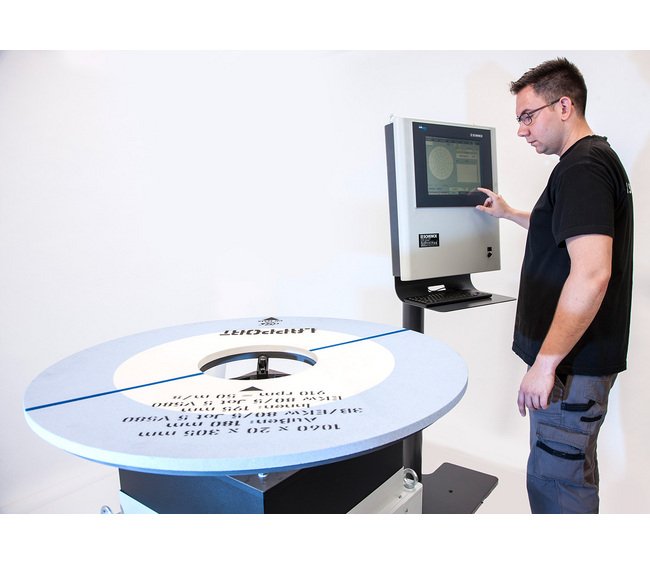

Measurement of the static unbalance of disc-shaped rotors such as unfired grinding discs, propellers and ventilators.Unbalance correction by addition of material directly on the machine or by removal of material on separate correction units.Can be used for mere unbalance measurement, for tasks in production involving unbalance correction, for incoming goods inspection, for re-balancing and for weight measurement.
Special Features Special Features

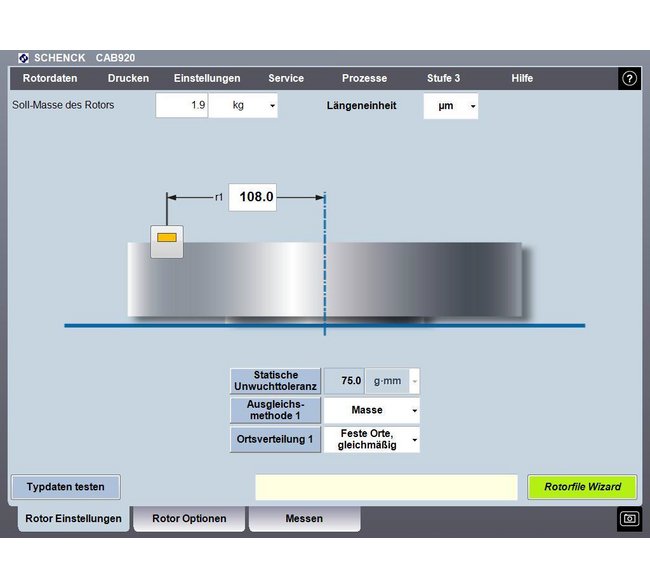

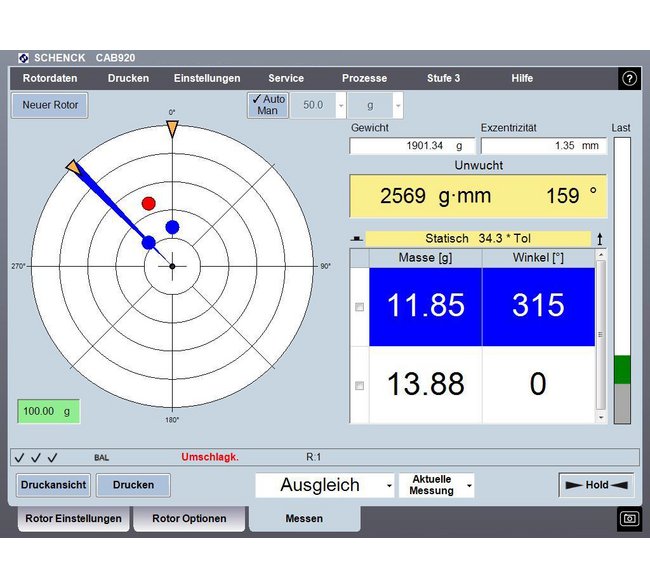

Direct display on achieving of tolerance limit, operator prompting during calibration process, memory for calibration data for easy change-over from one work-piece type to the next at the push of a button.Compact design ensures optimum ease of deployment.Program for compensating of adapter errors, test program displaying operator or system errors, process control through host computer is possible, integral product data base.
Technical Data Available Versions
Enclosure-Mounted Version for Large Rotors | Table-Top Version
Technical Data Basic Machine Order Number
R0050300.02
Technical Data Brands
SCHENCK
Technical Data Diameter
500 mm
Technical Data Load Carrying Capability Of The Balancing Unit
3 to 6 kg
Technical Data Maximum Measurable Unbalance
14 kg/mm
Technical Data Measuring Time
2 to 5 seconds
Technical Data Measuring Uncertainty
5 g/mm
Technical Data Rotor Applications
Chopper rotors | Clutch components, flywheels | Grinding discs | Ventilators, fans | Wheel hubs, brake drums, brake discs
