StrongHold Load Pin Bobbin
StrongHold Load Pin Bobbin
SKU:LOA-66d3e8
Enhance load monitoring with the StrongHold Load Pin Bobbin. Heavy-duty construction, 220,000 lb load capacity, and precise engineering for reliable performance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
StrongHold Load Pin Bobbin
$149.99
Quantity: 1
Claim Your Seller Account
StrongHold Load Pin Bobbin
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

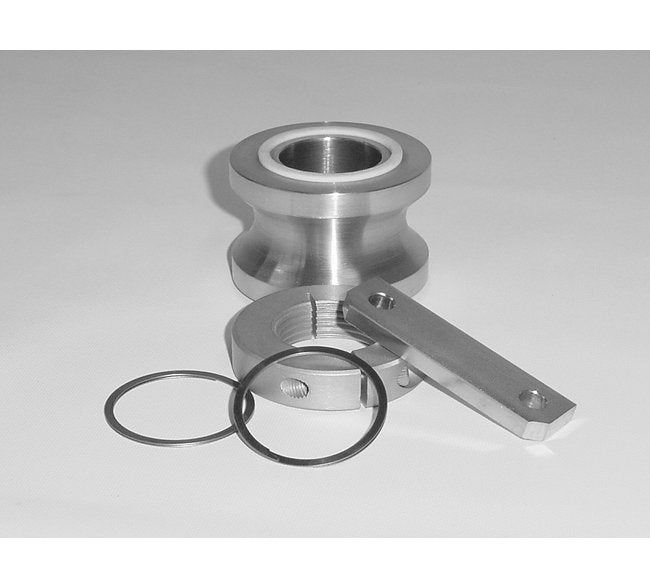

The StrongHold Load Pin Bobbin is designed for heavy-duty applications, featuring a Load Capacity of 220,000 lb and precision engineering with dimensions including D-Shackle Size of 4 inches and an A-Diameter of 4.250 inches. This Clevis Pin Bobbin ensures secure load monitoring and durability in demanding environments, meeting stringent industry standards for reliability and strength.
Product Specifications
Specifications A Diameter
4.250 in
Specifications B Diameter
4.750 in
Specifications C Diameter
5.250 in

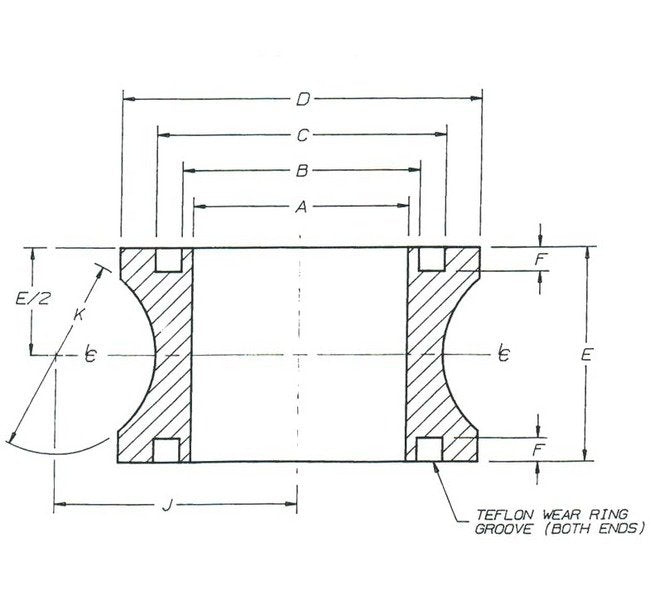

Specifications Dimensional Drawing
Clevis Pin Bobbins
Specifications D Diameter
7.000 in
Specifications D Shackle Size
4 Inch
Specifications E Height
6.500 in
Specifications F Slot Depth
0.250 in
Specifications J Length
4.625 in
Specifications K Diameter
3.750 in
Specifications Load Capacity
220000 lb
