Strybuc Aluminum Finish Concealed Vertical Rod Narrow Stile Exit Device
Strybuc Aluminum Finish Concealed Vertical Rod Narrow Stile Exit Device
SKU:COM-f3caa1
Strybuc Aluminum Finish Concealed Vertical Rod for secure and reversible commercial door applications up to 42" wide.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Strybuc Aluminum Finish Concealed Vertical Rod Narrow Stile Exit Device
$189.99
Quantity: 1
Claim Your Seller Account
Strybuc Aluminum Finish Concealed Vertical Rod Narrow Stile Exit Device
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

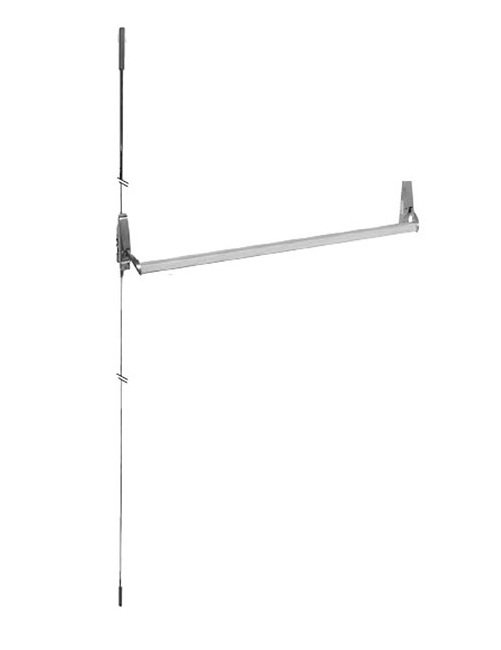

The Strybuc Aluminum Finish Concealed Vertical Rod Narrow Stile Exit Device combines the functionality of a vertical rod application with the aesthetics of a traditional panic device. Crafted with a contoured anodized aluminum cross bar and durable stainless steel springs, this Grade 2 device is non-handed and reversible. It is designed to fit doors up to 42" wide and can be field-sized for narrower doors. The latch case is 1-1/4" wide by 7-1/4" long, suitable for doors with a standard height of 7'. With various mounting options and included fasteners, this exit device offers both security and convenience for commercial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories
Item# - 19-755Item Name - Brass Mortise CylinderFinish - AluminumItem# - 19-755BZItem Name - Brass Mortise CylinderFinish - BronzeItem# - 19-410Item Name - Zinc Mortise CylinderFinish - AluminumItem# - 19-410BZItem Name - Zinc Mortise CylinderFinish - BronzeItem# - 19-756Item Name - Cylinder Mounting TrimFinish - Aluminum
Features Features
Material: Contoured anodized aluminum cross bar, stainless steel springsLatch Case: 1-1/4" wide x 7-1/4" longDoor Height: 7' standardBackset: Center template on narrow door stileStrike: Top-flat mortise, Bottom-flat mortise or directly through thresholdProjection: 4-3/4"Stile: 1-7/8" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: Up to 42"Mounting Height: 35-11/16" from floor to center line of the bottom latch case mounting studFasteners: Furnished with sheet metal, machine screws and shoulder mounting studs with set screwsCylinder: Accepts mortise typeDogging: Inside- push up dog pin and rotate with screwdriver, Outside- by key cylinder
Specifications Finish
Aluminum
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2
