Strybuc Aluminum Finish Touch Bar Narrow Stile Exit Device
Strybuc Aluminum Finish Touch Bar Narrow Stile Exit Device
SKU:COM-7f0409
Secure and durable aluminum touch bar exit device for narrow stile doors, compliant with ANSI standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Strybuc Aluminum Finish Touch Bar Narrow Stile Exit Device
$189.99
Quantity: 1
Claim Your Seller Account
Strybuc Aluminum Finish Touch Bar Narrow Stile Exit Device
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

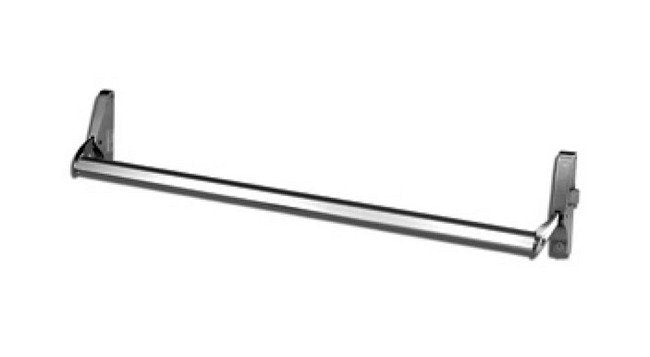

The Strybuc Aluminum Finish Touch Bar Narrow Stile Exit Device is crafted for narrow, medium, or wide stile aluminum and hollow metal doors. Featuring a contoured anodized aluminum crossbar and stainless steel springs, this device is designed for durability and security. Meeting American National Standards Institute (ANSI) A156.3 Grade 2 standards, this device ensures reliable and compliant access control.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-751Item Name - Exit Only PlateFinish - AluminumItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - Aluminum
Features Features

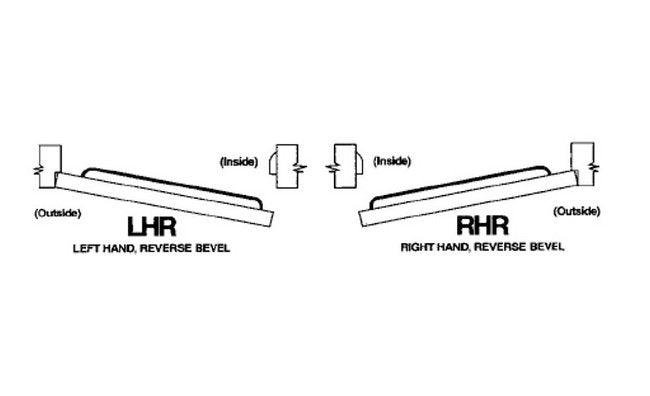

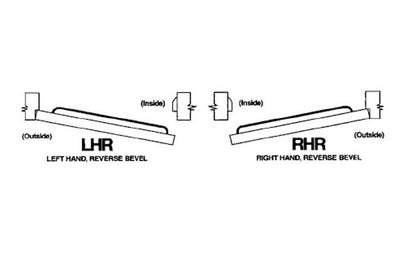

Material: Contoured anodized aluminum cross bar, stainless steel springsLatch Case: 1-1/4" wide x 7-1/4" long with 1/2" stainless throwBackset: 1-5/32" from edge of door to center line of deviceStrike: Rim mounted roller strike with shimProjection: 4-3/4"Stile: 1-7/8" minimumHanding: Handed, please specify RH or LHDoor Thickness: 1-3/4" standardDoor Width: Up to 42"Mounting Height: Recommended installation at 39-13/32" from floor to center line of latch or strike assembliesFasteners: Furnished with sheet metal, machine screws and shoulder mounting studs with set screwsCylinder: Accepts rim cylinder onlyDogging: Inside-push up dog pin rotate with screwdriver, Outside-by key cylinder
Specifications Door Opening
Right
Specifications Finish
Aluminum
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2
