Strybuc Aluminum Touch Bar Exit Device
Strybuc Aluminum Touch Bar Exit Device
SKU:COM-e536b7
Durable Strybuc Aluminum Touch Bar Exit Device for commercial doors. ANSI Grade 2 & UL Listed, easy to install, and secure.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Strybuc Aluminum Touch Bar Exit Device
$179.99
Quantity: 1
Claim Your Seller Account
Strybuc Aluminum Touch Bar Exit Device
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

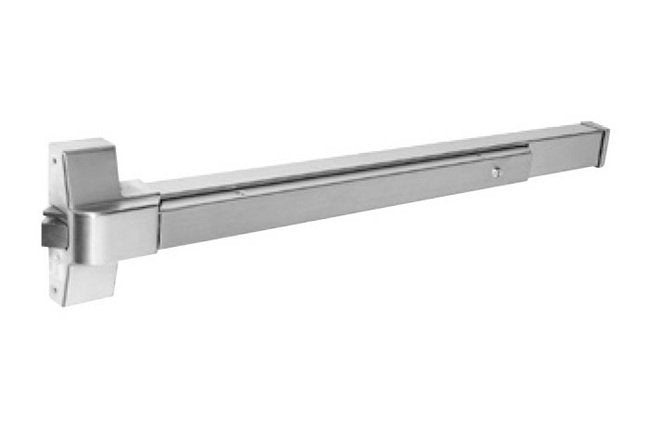

Upgrade your door security with the Strybuc Aluminum Finish Touch Bar Exit Device. Crafted from extruded anodized aluminum, this exit device is durable and ideal for commercial applications. With features like stainless steel springs, a reversible non-handed design, and mounting versatility, this exit device ensures reliable performance and easy installation. Compliant with ANSI A156.3 Grade 2 and UL Listed standards, it meets the highest industry benchmarks for safety and security.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - AluminumItem# - 19-1034ALItem Name - Entry BallFinish - AluminumItem# - 19-604ALItem Name - Entry LeverFinish - AluminumItem# - 19-619ALItem Name - Storeroom LeverFinish - AluminumItem# - 19-618ALItem Name - Passage LeverFinish - AluminumItem# - 19-752Item Name - Night Latch Handle SetFinish - AluminumItem# - 19-753Item Name - Dummy Handle SetFinish - AluminumItem# - 19-1038ALItem Name - Entry Handle SetDescription - with CylinderFinish - AluminumItem# - 19-1035ALItem Name - Entry Handle SetDescription - no CylinderFinish - AluminumItem# - 19-751Item Name - Exit Only PlateFinish - Aluminum
Features Features

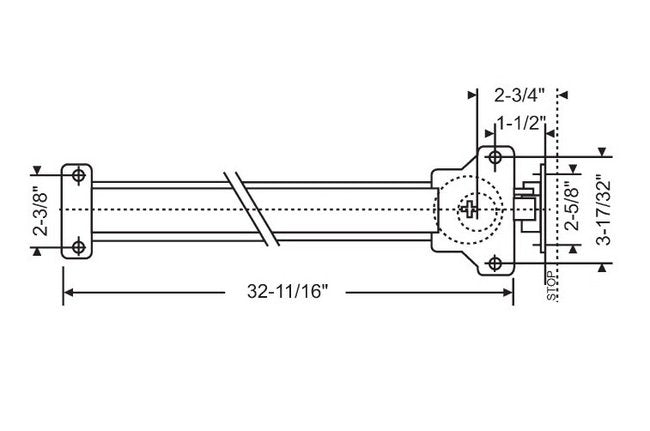

Material: Extruded anodized aluminum push bar, stainless steel springsLatch: Stainless Steel, 3/4" throw - 5/8" dead latchBackset: 2-3/4" Covers 161 prep, includes latch & Strike filler platesStrike: Surface mounted for 5/8" stop with shimProjection: 2-1/2" - 1-7/8" doggedStile: 4-1/4" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: 36", can be field sized to 30"Mounting Height: Recommended installation at 41" from finished floor to center line of push rail.Fasteners: Furnished with sheet metal and machine screwsDogging: 1/2 turn hex keyCylinder Not Included (order separately)
Specifications Finish
Aluminum
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2 | Underwriters Laboratories (UL) Listed
