Strybuc Bronze Finish Narrow Stile Exit Device
Strybuc Bronze Finish Narrow Stile Exit Device
SKU:COM-c40b1c
Premium Strybuc Bronze Exit Device for narrow stile doors. ANSI Grade 2 compliant with contoured aluminum cross bar for security and durability.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Strybuc Bronze Finish Narrow Stile Exit Device
$189.99
Quantity: 1
Claim Your Seller Account
Strybuc Bronze Finish Narrow Stile Exit Device
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

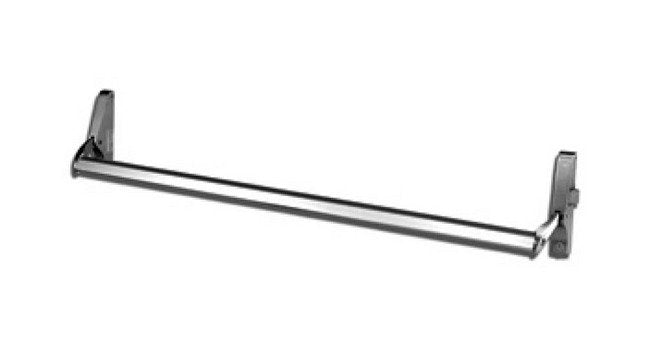

The Strybuc Bronze Finish Touch Bar Narrow Stile Exit Device is a high-quality 'crash bar' style exit device designed for narrow, medium, or wide stile aluminum and hollow metal doors. Featuring a contoured anodized aluminum cross bar and stainless steel springs, this Grade 2 device is ANSI A156.3 compliant. With a latch case measuring 1-1/4" wide x 7-1/4" long and a rim mounted roller strike, this device offers durability and security. It can fit doors up to 42" wide and is field-sizable to accommodate narrower doors. The product is designed for ease of installation and operation, making it a reliable choice for commercial door and storefront hardware needs.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-751Item Name - Exit Only PlateFinish - AluminumItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - Aluminum
Features Features

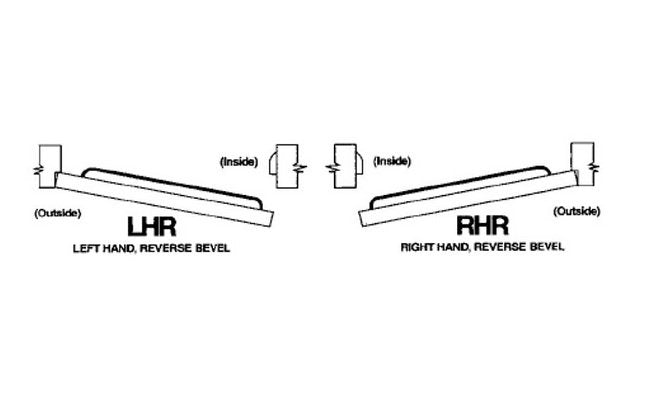

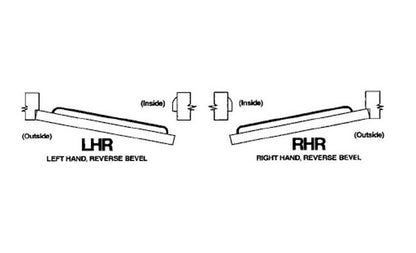

Material: Contoured anodized aluminum cross bar, stainless steel springsLatch Case: 1-1/4" wide x 7-1/4" long with 1/2" stainless throwBackset: 1-5/32" from edge of door to center line of deviceStrike: Rim mounted roller strike with shimProjection: 4-3/4"Stile: 1-7/8" minimumHanding: Handed, please specify RH or LHDoor Thickness: 1-3/4" standardDoor Width: Up to 42"Mounting Height: Recommended installation at 39-13/32" from floor to center line of latch or strike assembliesFasteners: Furnished with sheet metal, machine screws and shoulder mounting studs with set screwsCylinder: Accepts rim cylinder onlyDogging: Inside-push up dog pin rotate with screwdriver, Outside-by key cylinder
Specifications Door Opening
Left
Specifications Finish
Bronze
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2
