Strybuc Bronze Finish Touch Bar Narrow Stile Exit Device
Strybuc Bronze Finish Touch Bar Narrow Stile Exit Device
SKU:COM-54f1ec
Upgrade security with Strybuc Bronze Touch Bar Exit Device for narrow stile doors. ANSI Grade 2 compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Strybuc Bronze Finish Touch Bar Narrow Stile Exit Device
$129.99
Quantity: 1
Claim Your Seller Account
Strybuc Bronze Finish Touch Bar Narrow Stile Exit Device
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

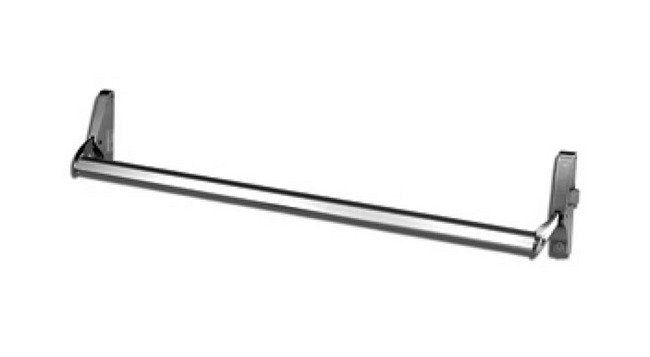

Enhance safety and security with the Strybuc Bronze Finish Touch Bar Narrow Stile Exit Device. Crafted with a contoured anodized aluminum cross bar and stainless steel components, this device meets ANSI A156.3 Grade 2 standards. Ideal for narrow, medium, or wide stile doors, it boasts a unique contoured design, rim mounted roller strike, and customizable backset for door widths up to 42". Ensure smooth operation and reliability in commercial settings with this premium exit device.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-751Item Name - Exit Only PlateFinish - AluminumItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - Aluminum
Features Features

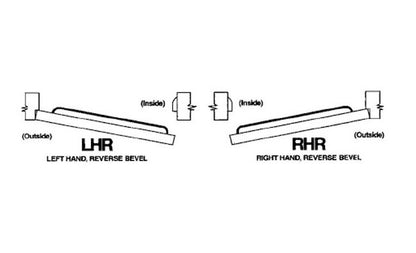

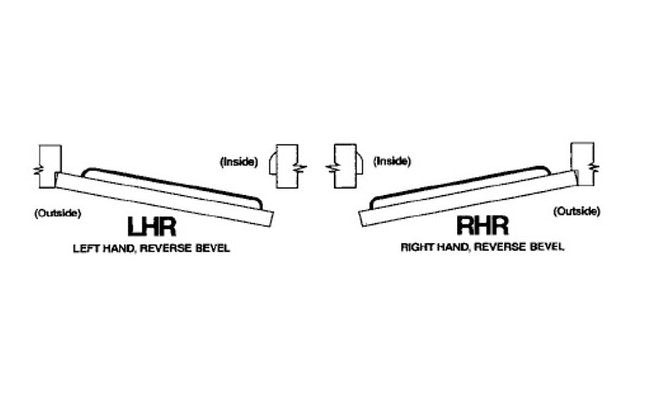

Material: Contoured anodized aluminum cross bar, stainless steel springsLatch Case: 1-1/4" wide x 7-1/4" long with 1/2" stainless throwBackset: 1-5/32" from edge of door to center line of deviceStrike: Rim mounted roller strike with shimProjection: 4-3/4"Stile: 1-7/8" minimumHanding: Handed, please specify RH or LHDoor Thickness: 1-3/4" standardDoor Width: Up to 42"Mounting Height: Recommended installation at 39-13/32" from floor to center line of latch or strike assembliesFasteners: Furnished with sheet metal, machine screws and shoulder mounting studs with set screwsCylinder: Accepts rim cylinder onlyDogging: Inside-push up dog pin rotate with screwdriver, Outside-by key cylinder
Specifications Door Opening
Right
Specifications Finish
Bronze
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2
