Strybuc Stainless Steel Finish Touch Bar Exit Device
Strybuc Stainless Steel Finish Touch Bar Exit Device
SKU:COM-62d329
Premium Strybuc Touch Bar Exit Device for commercial doors with stainless steel finish and ANSI Grade 2 & UL Listing.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Strybuc Stainless Steel Finish Touch Bar Exit Device
$179.99
Quantity: 1
Claim Your Seller Account
Strybuc Stainless Steel Finish Touch Bar Exit Device
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

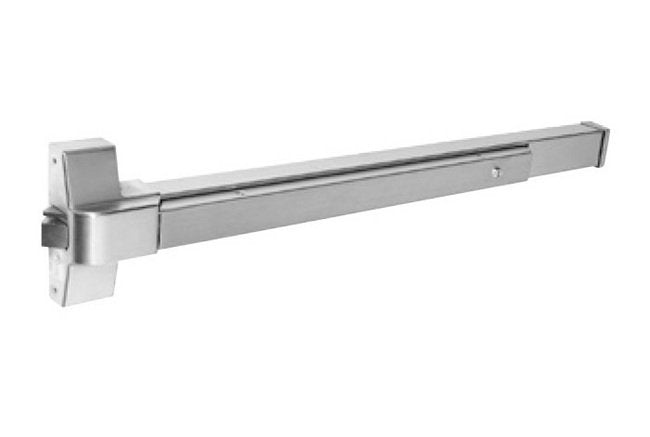

The Strybuc Stainless Steel Finish Touch Bar Exit Device is a premium-grade exit device ideal for commercial doors in storefront settings. Crafted from extruded anodized aluminum with stainless steel springs and latch, this ANSI Grade 2 and UL Listed device offers exceptional durability and security. With reversible handing and adjustable mounting height, it caters to various door configurations. Recommended for its 3/4" throw latch, surface-mounted strike, and easy 1/2 turn hex key dogging, this versatile device ensures reliable exit functionality. (Note: Rim cylinder sold separately)
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - AluminumItem# - 19-1034ALItem Name - Entry BallFinish - AluminumItem# - 19-604ALItem Name - Entry LeverFinish - AluminumItem# - 19-619ALItem Name - Storeroom LeverFinish - AluminumItem# - 19-618ALItem Name - Passage LeverFinish - AluminumItem# - 19-752Item Name - Night Latch Handle SetFinish - AluminumItem# - 19-753Item Name - Dummy Handle SetFinish - AluminumItem# - 19-1038ALItem Name - Entry Handle SetDescription - with CylinderFinish - AluminumItem# - 19-1035ALItem Name - Entry Handle SetDescription - no CylinderFinish - AluminumItem# - 19-751Item Name - Exit Only PlateFinish - Aluminum
Features Features

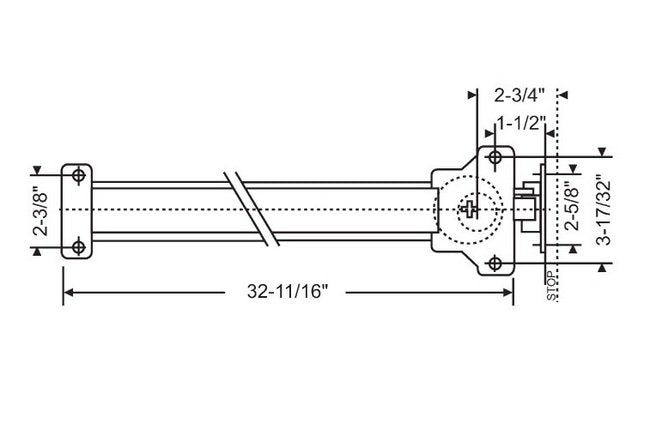

Material: Extruded anodized aluminum push bar, stainless steel springsLatch: Stainless Steel, 3/4" throw - 5/8" dead latchBackset: 2-3/4" Covers 161 prep, includes latch & Strike filler platesStrike: Surface mounted for 5/8" stop with shimProjection: 2-1/2" - 1-7/8" doggedStile: 4-1/4" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: 36", can be field sized to 30"Mounting Height: Recommended installation at 41" from finished floor to center line of push rail.Fasteners: Furnished with sheet metal and machine screwsDogging: 1/2 turn hex keyCylinder Not Included (order separately)
Specifications Finish
Stainless Steel
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2 | Underwriters Laboratories (UL) Listed
