Studs MS21259 Stainless Steel Military Spec Threaded Studs
Studs MS21259 Stainless Steel Military Spec Threaded Studs
SKU:MIL-929153
Premium stainless steel studs for military specs. RH/LH thread, precise dimensions for 1-inch wire ropes. Durable & reliable construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

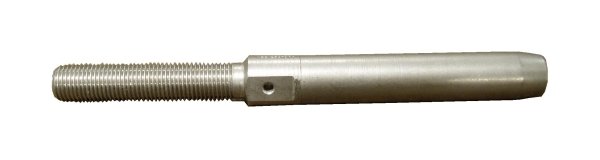

The Studs MS21259 are precision-engineered stainless steel threaded studs designed for military specifications. These studs feature RH or LH thread options and are built to fit wire rope diameters of 1 inch, with a sturdy construction suitable for demanding applications. With dimensions meeting rigorous standards including Thread Size, A Diameter, C Diameter, and more, these studs ensure reliable performance and durability in military operations.

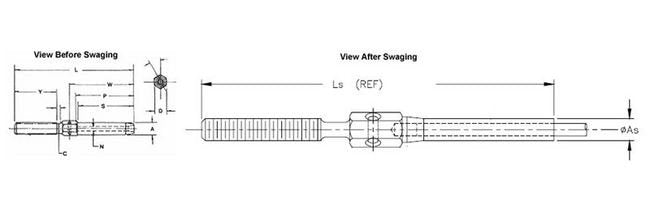

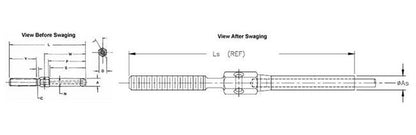

Product Specifications
Specifications As Diam
1.625
Specifications A Diam
1.812
Specifications C Diam In
1.217
Specifications D In
1.875
Specifications Lbs Per Piece
5.35
Specifications Ls Ref
15.88
Specifications L 015 000 In
14.969
Specifications N Diam
1.046
Specifications P In
8.229
Specifications S 062 000 In
8.156
Specifications Thread Size B
(1 1/4)-12
Specifications To Fit Wire Rope Dia In
1
Specifications W 016 In
9.000
Specifications Y 063 000 In
5.000
CAGE
0T9L4
NAICS
332510
PSC
4030
