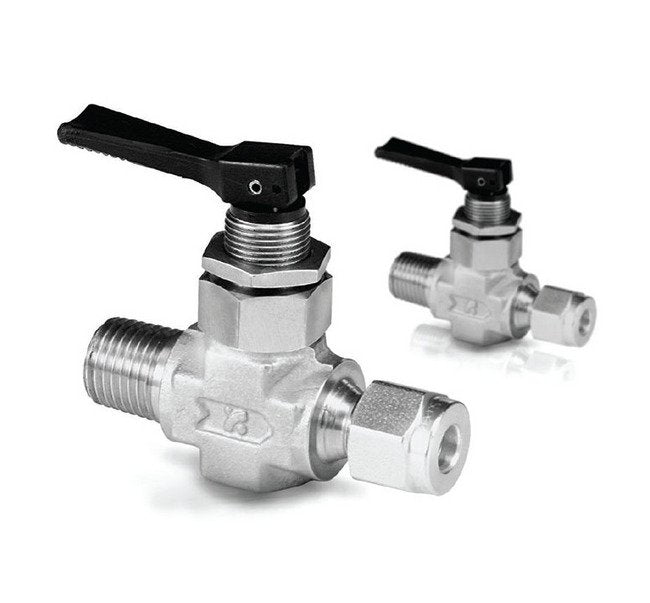

STV Series Toggle Valve with 1/8" FNPT Inlet/Outlet and 3.2mm Orifice
STV Series Toggle Valve with 1/8" FNPT Inlet/Outlet and 3.2mm Orifice
SKU:STV-1bd5b9
Precisely control flow with the STV Series Toggle Valve. Compact design, quick-acting, and durable construction for reliable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
STV Series Toggle Valve with 1/8" FNPT Inlet/Outlet and 3.2mm Orifice
$45.99
Quantity: 1
Claim Your Seller Account
STV Series Toggle Valve with 1/8" FNPT Inlet/Outlet and 3.2mm Orifice
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STV Series Toggle Valve features a compact design with quick-acting capabilities, ideal for precise flow control. With orifice sizes ranging from 0.080 to 0.250 inches, this valve offers straight and angle flow patterns. Constructed with 316 Stainless Steel or Brass body material and various end connections including SUPERLOK® tube fittings, male/female NPT, it ensures durability and compatibility with different systems. Tested at the factory, this valve guarantees reliability and performance. Rated for -20 to 200°F temperatures and 300 psig working pressure, it meets stringent industry standards.
Product Specifications
Features Features
Compact design.Quick acting.Orifice sizes from 0.080 to 0.250 in. (2.0 to 6.4 mm).Straight, angle flow patterns.SUPERLOK® tube fitting, male and female NPT, and Combination of end connections.Each and every valve is tested at the factory.
Note Note

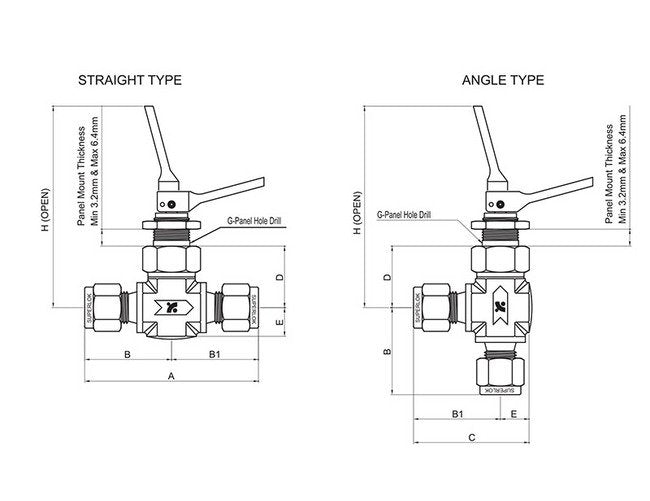

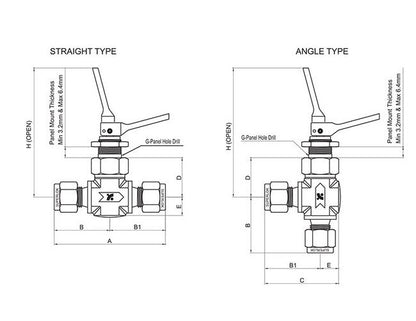

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
41.4 mm
Technical Specs Dimension B
20.6 mm
Technical Specs Dimension B1
20.6 mm
Technical Specs Dimension C
30.2 mm
Technical Specs Dimension D
21.8 mm
Technical Specs Dimension E
9.5 mm
Technical Specs Dimension G
13.5 mm
Technical Specs Dimension H
71.4 mm
Technical Specs Flow Coefficients Cv
0.2
Technical Specs Inlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Orifice Size
3.2 mm
Technical Specs Outlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs O Ring Material
Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating
-20 to 200 ºF | -28 to 93 ºC
Technical Specs Working Pressure
300 psig | 20.6 bar
