SUCI 1/2in Tube Union Cross Fitting
SUCI 1/2in Tube Union Cross Fitting
SKU:SUC-0bb19a
Enhance tube connections with the SUCI Series Union Cross Fitting, ensuring safety, productivity, and industry-leading design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUCI 1/2in Tube Union Cross Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUCI 1/2in Tube Union Cross Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

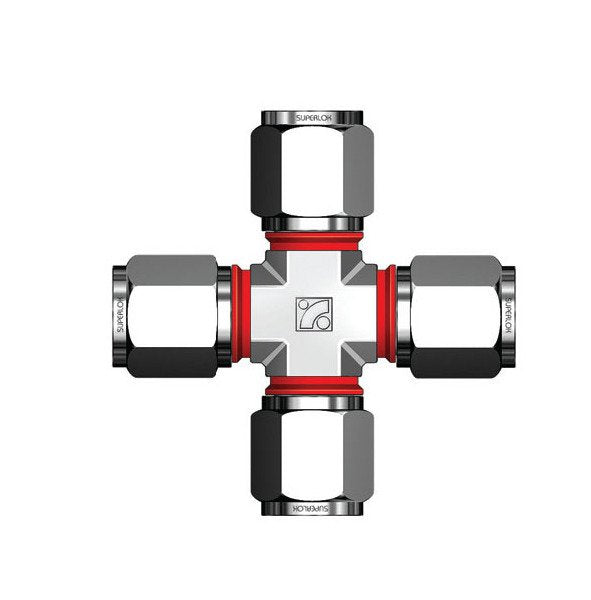

The SUCI Series 1/2 Inch Tube Outside Diameter Union Cross Fitting is a precision-engineered component that ensures seamless connection of fractional tubes. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting features innovative i-Fitting® design with a check ring for perfect compression. Enhancing safety in high-pressure environments, improving productivity, and offering easy valve connections, the SUCI Union Cross Fitting is a game-changer in the industry.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

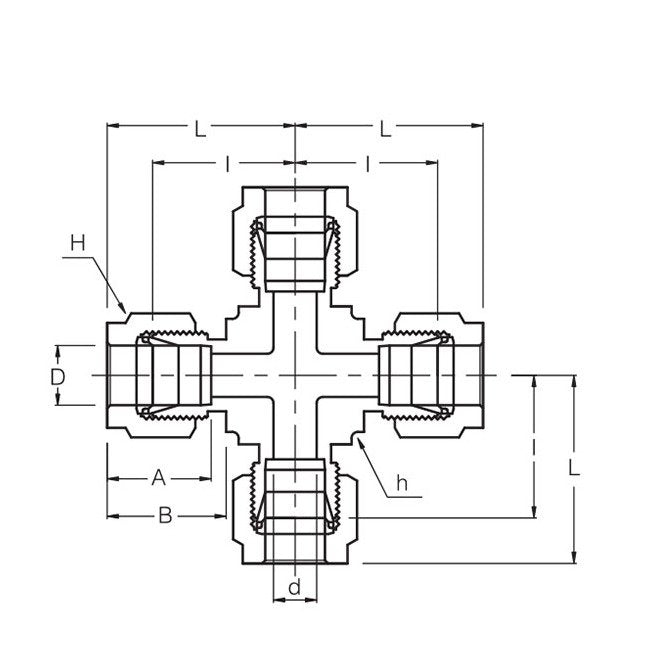

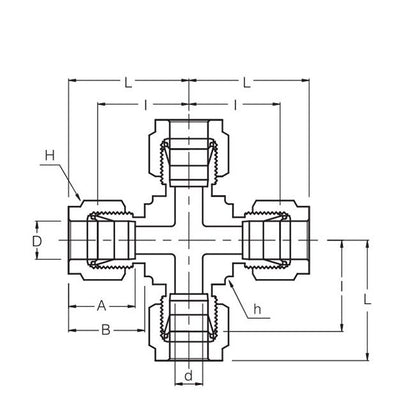

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
