SUCI 1 Inch Tubing Union Cross Fitting
SUCI 1 Inch Tubing Union Cross Fitting
SKU:SUC-055fd7
Enhance safety and efficiency with the SUCI 1 Inch Tubing Union Cross Fitting. Perfect compression, superior materials, industry-leading design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUCI 1 Inch Tubing Union Cross Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUCI 1 Inch Tubing Union Cross Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

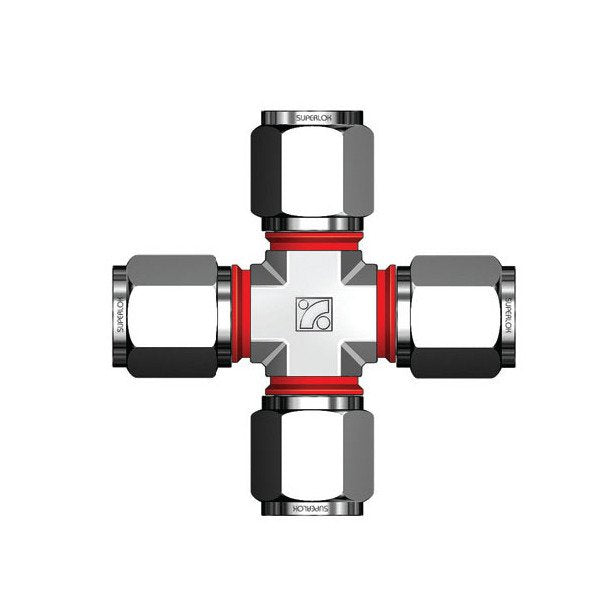

The SUCI Series 1 Inch Tube Outside Diameter Union Cross Fitting is a premium solution for connecting fractional tubes in various industries. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting features an innovative i-Fitting® design with a built-in gap gauge for perfect compression. Not only does it enhance installer safety in high-pressure environments but it also boosts productivity, reduces costs, and ensures a secure connection. With dimensions designed for precision and compatibility with valve connections, the SUCI Union Cross Fitting is an industry-leading choice.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

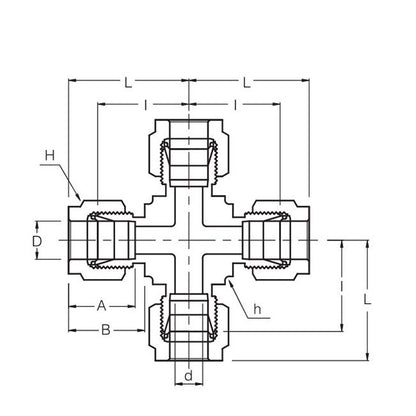

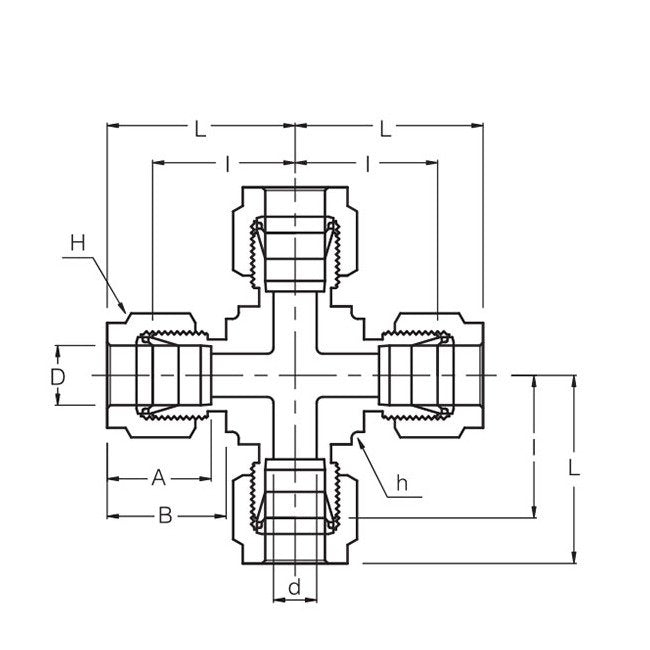

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
36.83 mm
Technical Specs Dimension L
49.02 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
