SUCI 18mm Tube Union Cross Fitting
SUCI 18mm Tube Union Cross Fitting
SKU:SUC-5a94c1
High-quality 18mm Tube Union Cross Fitting for secure metric tube connections. Patented design for safety and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUCI 18mm Tube Union Cross Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUCI 18mm Tube Union Cross Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

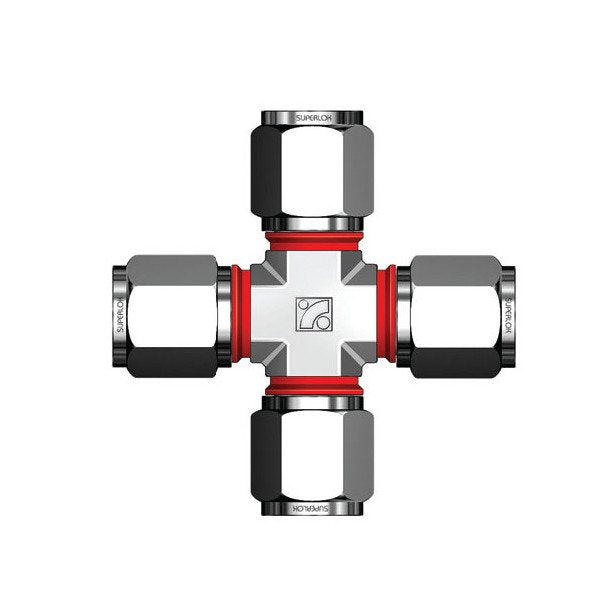

The SUCI Series 18mm Tube Outside Diameter Union Cross Fitting is a precision-engineered connector designed for metric tubes. Crafted from high-quality Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this fitting ensures a secure and leak-free connection. Its innovative i-Fitting® design includes a built-in check ring for precise compression, enhancing safety, efficiency, and cost-effectiveness. Perfect for valve connections in high-pressure environments, this patented fitting exceeds industry standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

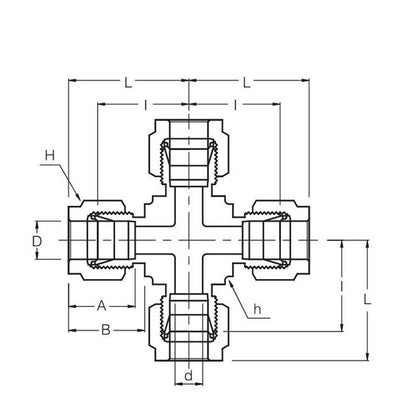

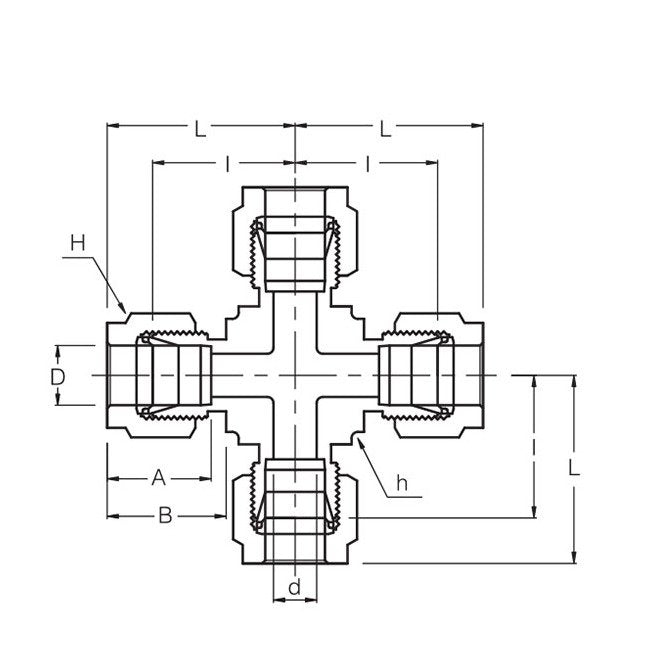

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
28.2 mm
Technical Specs Dimension L
38.3 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
30 mm
