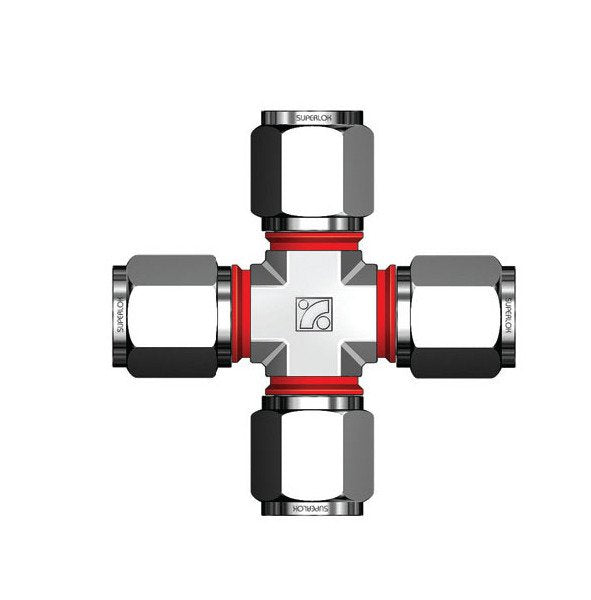

SUCI Series 20mm Tube Union Cross Fitting
SUCI Series 20mm Tube Union Cross Fitting
SKU:SUC-546edc
Enhance tube connectivity with precision and safety using the SUCI Series 20mm Union Cross Fitting. Patented i-Fitting® design for efficiency and reliability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUCI Series 20mm Tube Union Cross Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SUCI Series 20mm Tube Union Cross Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUCI Series 20mm Tube Union Cross Fitting is expertly designed to connect metric tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, Aluminum, and Stainless Steel, this fitting boasts a standard size range of 6 to 25mm. Its innovative i-Fitting® components, such as the check ring for perfect compression, not only enhance safety in high-pressure environments but also improve installation efficiency, reducing costs. This industry-changing design is patented by BMT, ensuring superior performance and durability. Ideal for valve connections, this fitting exceeds industry standards, making it a top choice for institutional and government procurement needs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

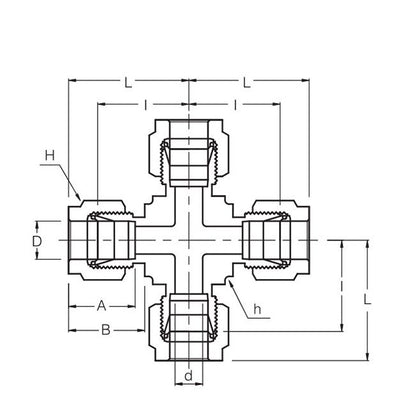

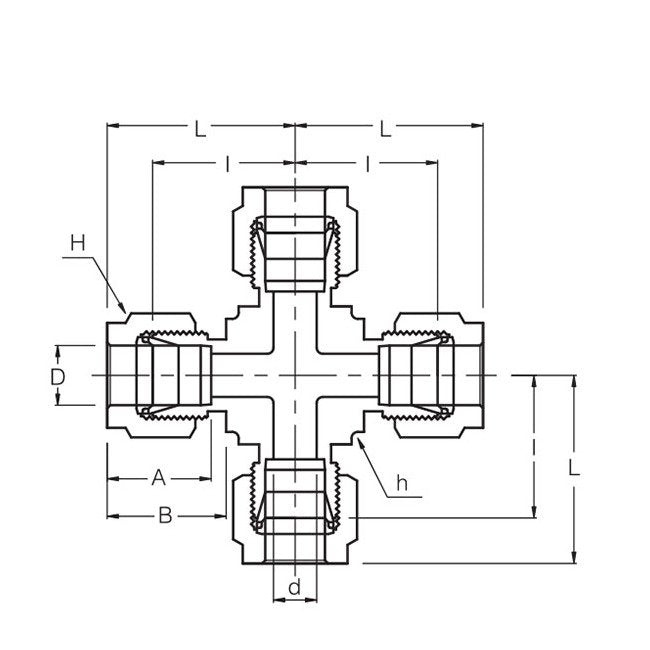

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
26.0 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
34.5 mm
Technical Specs Dimension L
44.6 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
20 mm
Technical Specs Width Across Flat H
32 mm
