SUCI Series 3/8in Tube OD Union Cross Fitting
SUCI Series 3/8in Tube OD Union Cross Fitting
SKU:SUC-5c1ce2
Precision 3/8in Tube OD Union Cross Fitting for safe, efficient tube connections
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUCI Series 3/8in Tube OD Union Cross Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SUCI Series 3/8in Tube OD Union Cross Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

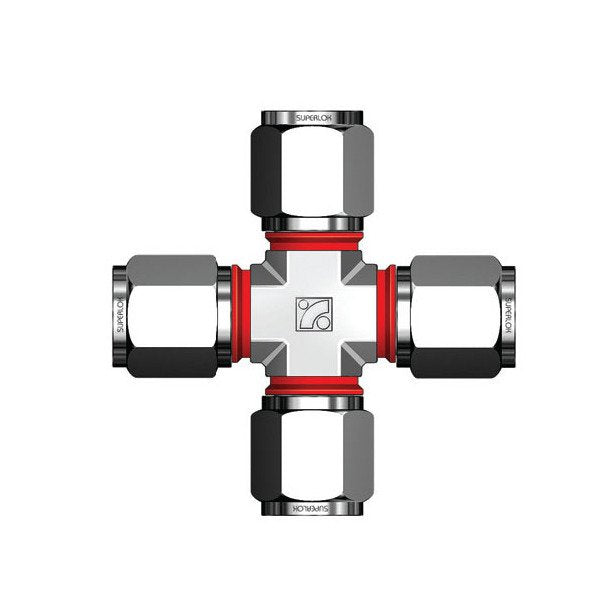

The SUCI Series 3/8 inch Tube OD Union Cross Fitting is designed to connect fractional tubes with precision and reliability. Constructed from high-quality materials including Alloy 625, Stainless Steel, and more, this fitting ensures durability and optimal performance in various environments. Featuring the innovative i-Fitting® components such as a built-in gap gauge for perfect compression, enhanced safety in high-pressure conditions, and increased productivity, this fitting is a game-changer in the industry. With dimensions that meet industry standards and a patented design by BMT, the SUCI Series Union Cross Fitting is the ideal choice for demanding applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

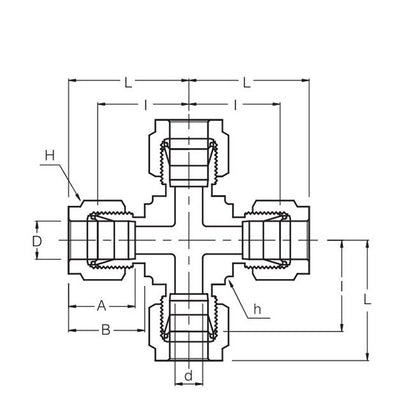

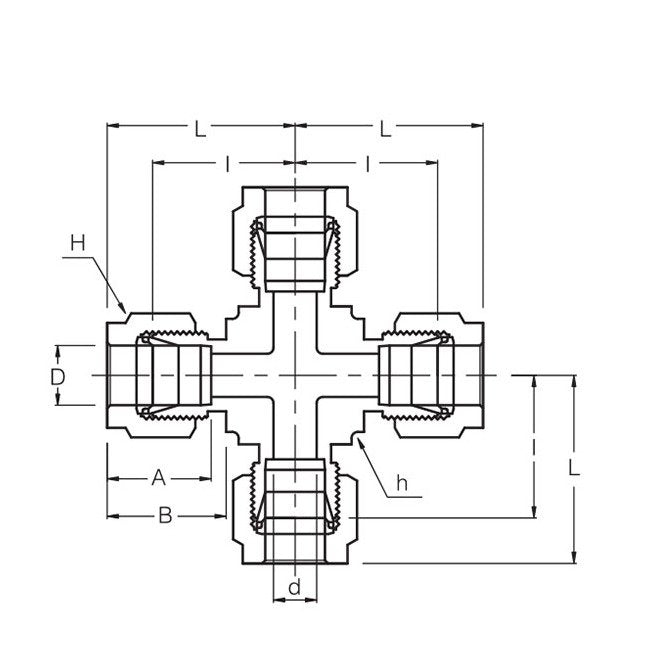

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
