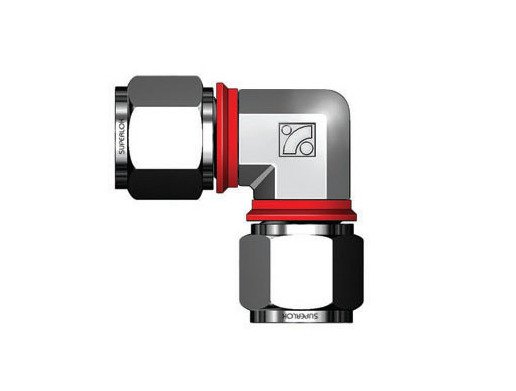

SUEI 1/2in Tube OD Union Elbow
SUEI 1/2in Tube OD Union Elbow
SKU:SUE-910eb9
Precision union elbow for fractional tube connections, ensures perfect compression and installer safety.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SUEI 1/2in Tube OD Union Elbow
$24.99
Quantity: 1
Claim Your Seller Account
SUEI 1/2in Tube OD Union Elbow
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUEI Series 1/2 Inch Tube Outside Diameter (D) Union Elbow is expertly designed to connect fractional tubes with precision and reliability. Made of high-quality materials such as Alloy 625 and Stainless Steel, this Union Elbow features i-Fitting® components that ensure perfect compression, prevent over- or under-tightening, and enhance installer safety in high-pressure environments. Its industry-changing patented design by BMT makes it a superior choice for valve connections, improving productivity while reducing costs. Reliable, durable, and compliant with stringent industry standards, this Union Elbow is ideal for various applications in both consumer and institutional settings.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

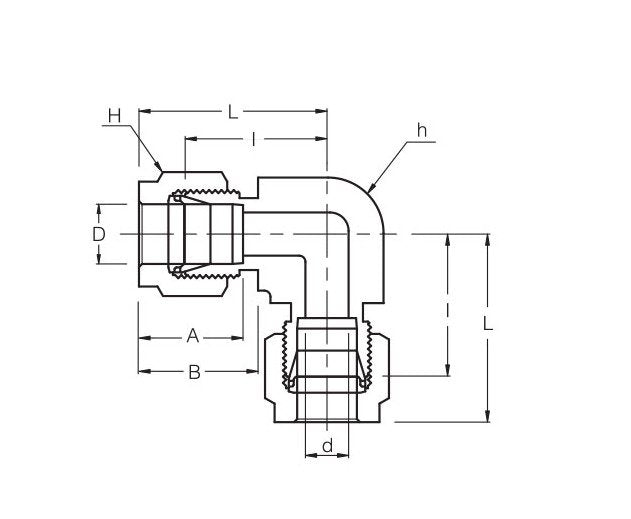

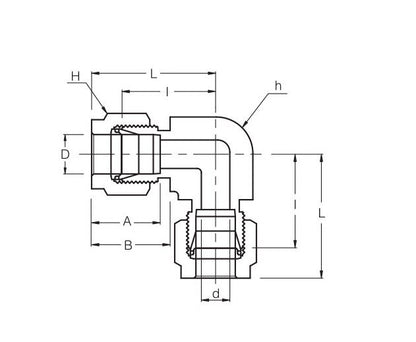

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
