SUEI 1/4in Tube OD Union Elbow for High-Pressure Systems
SUEI 1/4in Tube OD Union Elbow for High-Pressure Systems
SKU:SUE-ab3514
High-performance 1/4in Tube OD Union Elbow for precise valve connections in high-pressure systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUEI 1/4in Tube OD Union Elbow for High-Pressure Systems
$29.99
Quantity: 1
Claim Your Seller Account
SUEI 1/4in Tube OD Union Elbow for High-Pressure Systems
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

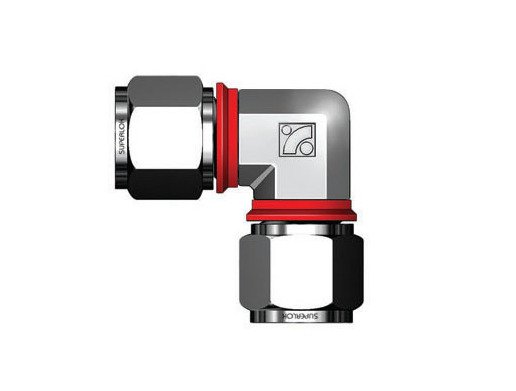

The SUEI Series 1/4 Inch Tube OD Union Elbow is designed for connecting fractional tubes in high-pressure and hazardous chemical environments. Featuring i-Fitting® components for perfect compression, increased installer safety, and improved productivity, this patented design is ideal for valve connections. Made from a variety of materials including stainless steel and brass, it offers versatility and durability. With dimensions suited for industry standards from 1/4 to 1 inch, this union elbow is a reliable choice for demanding applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

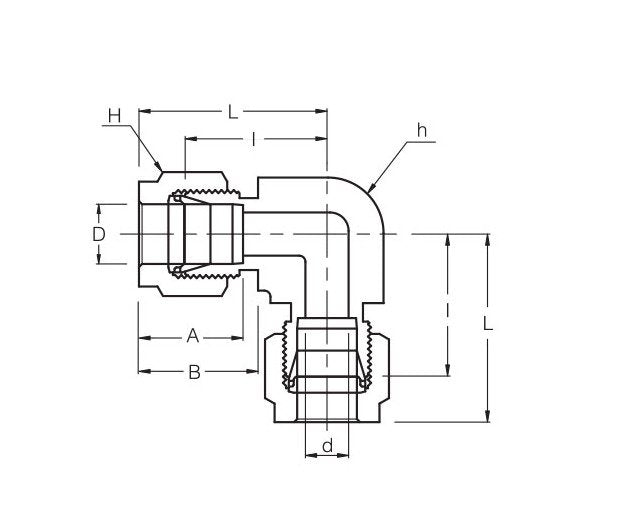

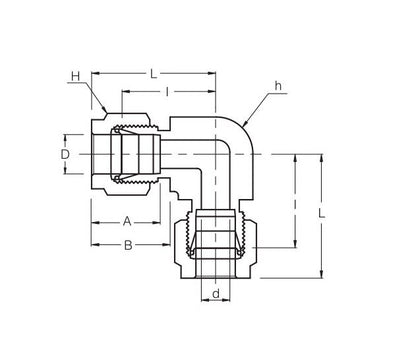

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
20.10 mm
Technical Specs Dimension L
27.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
