SUEI Series 1'' Tube OD Union Elbow for Fractional Tube Connections
SUEI Series 1'' Tube OD Union Elbow for Fractional Tube Connections
SKU:SUE-917ebf
Enhance safety, productivity, and precision with the SUEI Series 1'' Tube OD Union Elbow for fractional tube connections.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SUEI Series 1'' Tube OD Union Elbow for Fractional Tube Connections
$49.99
Quantity: 1
Claim Your Seller Account
SUEI Series 1'' Tube OD Union Elbow for Fractional Tube Connections
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

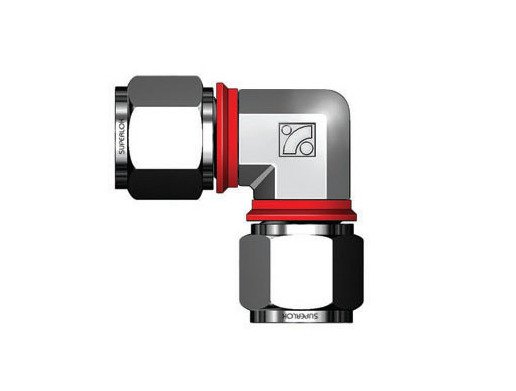

The SUEI Series 1-inch Tube OD Union Elbow is expertly engineered for a precise fit in fractional tube connections. Made from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, it features the innovative i-Fitting® design offering increased safety, productivity, and cost-efficiency. With a built-in check ring for perfect compression, this patented elbow is ideal for valve connections in high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

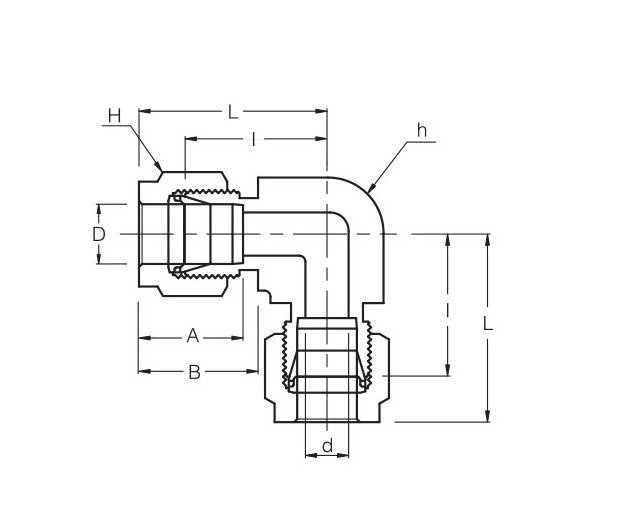

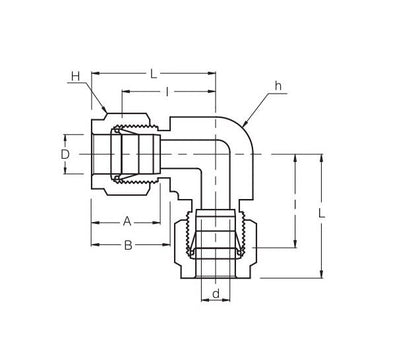

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
36.83 mm
Technical Specs Dimension L
49.02 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
