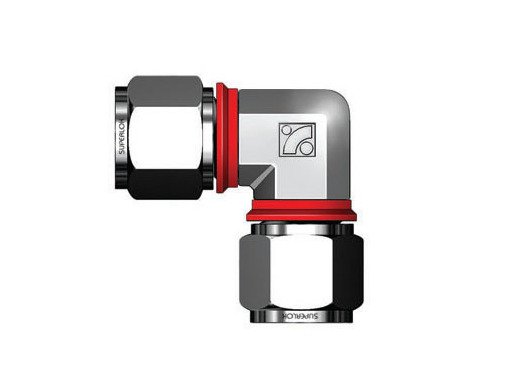

The SUEI Series 10mm Tube Outside Diameter Union Elbow is a precision-engineered fitting designed for metric tube connections. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union elbow ensures durability and longevity in various industries. Its innovative i-Fitting® design features a built-in gap gauge, enhancing installer safety by preventing over- and under-tightening. Ideal for high-pressure environments, this union elbow increases productivity, reduces costs, and boasts a patented industry-changing design.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

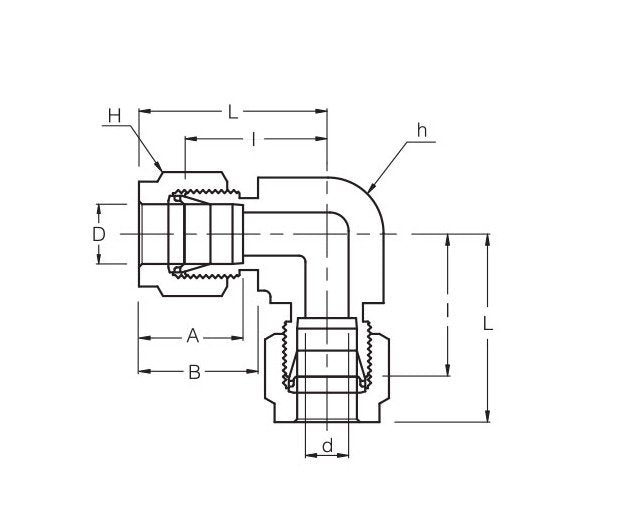

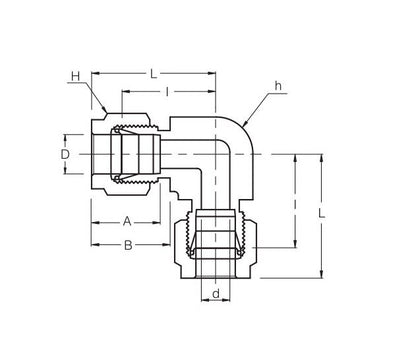

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
23.9 mm
Technical Specs Dimension L
31.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
