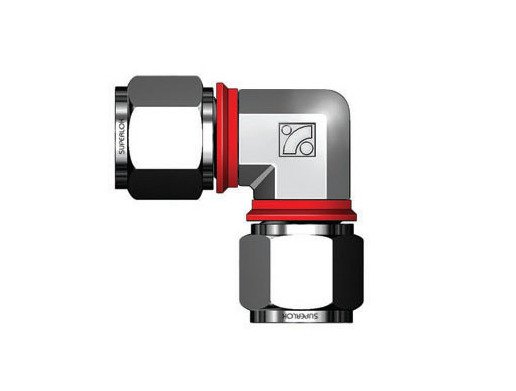

SUEI Series 16mm Tube Outside Diameter Union Elbow
SUEI Series 16mm Tube Outside Diameter Union Elbow
SKU:SUE-66d734
High-quality SUEI Series 16mm Tube Outside Diameter Union Elbow for precise metric tube connections with innovative safety features.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
SUEI Series 16mm Tube Outside Diameter Union Elbow
$42.99
Quantity: 1
Claim Your Seller Account
SUEI Series 16mm Tube Outside Diameter Union Elbow
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUEI Series 16mm Tube Outside Diameter Union Elbow is a precision-engineered fitting designed to connect metric tubes seamlessly. Crafted from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this union elbow ensures durability and reliability in various industrial applications. Its innovative i-Fitting® components, including a built-in gap gauge for perfect compression, enhance installer safety in high-pressure environments. This product not only solves tightening issues but also improves productivity and reduces costs, making it a valuable addition to any setup. With dimensions adaptable to standard sizes ranging from 6 to 25mm, this union elbow offers versatility and security in valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

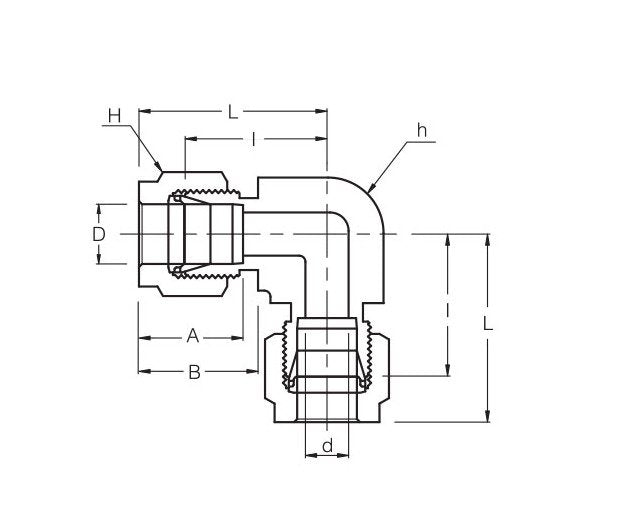

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
27.9 mm
Technical Specs Dimension L
38.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
12.7 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
16 mm
Technical Specs Width Across Flat H
25 mm
