SUEI Series 18mm Tube OD Union Elbow
SUEI Series 18mm Tube OD Union Elbow
SKU:SUE-b1161a
Enhance tube connections with the advanced SUEI Series 18mm Union Elbow, ensuring safety and efficiency in high-pressure environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUEI Series 18mm Tube OD Union Elbow
$39.99
Quantity: 1
Claim Your Seller Account
SUEI Series 18mm Tube OD Union Elbow
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

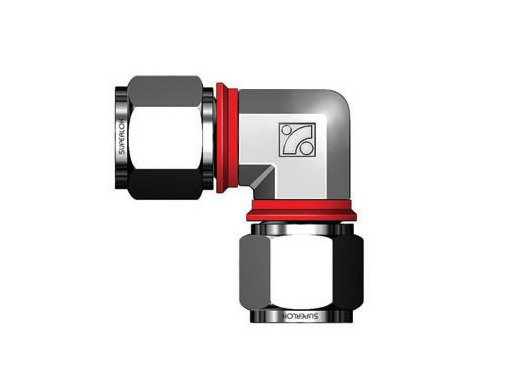

The SUEI Series 18mm Tube Outside Diameter (D) Union Elbow offers a reliable connection for metric tubes. Crafted from high-quality materials such as Alloy 625, Alloy 825, and Stainless Steel, this union elbow ensures durability and performance. Its i-Fitting® design, including body, ferrules, nut, and check ring, enhances safety by preventing over- or under-tightening issues. Ideal for high-pressure and chemical environments, this industry-changing elbow improves efficiency, reduces costs, and complies with strict industry standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

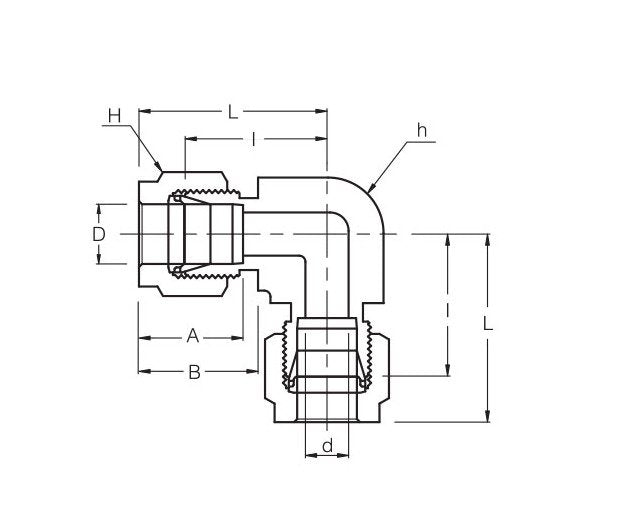

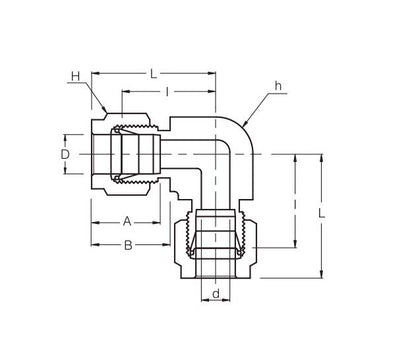

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
29.7 mm
Technical Specs Dimension L
39.8 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
30 mm
