SUEI Series 20mm Tube OD Union Elbow
SUEI Series 20mm Tube OD Union Elbow
SKU:SUE-b2134d
Precision-engineered 20mm Tube OD Union Elbow for secure metric tube connections. i-Fitting® technology ensures safety, efficiency, and industry-leading performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUEI Series 20mm Tube OD Union Elbow
$39.99
Quantity: 1
Claim Your Seller Account
SUEI Series 20mm Tube OD Union Elbow
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

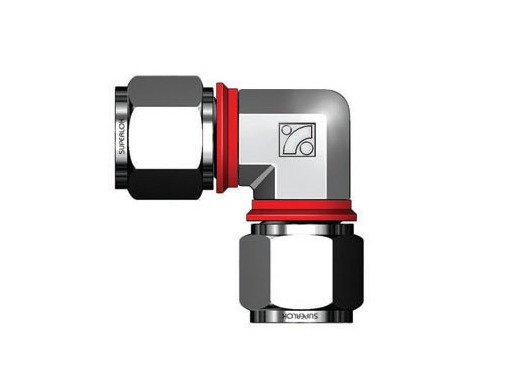

The SUEI Series 20mm Tube Outside Diameter (D) Union Elbow is expertly crafted to connect metric tubes with precision and reliability. Constructed from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union elbow ensures exceptional performance in various industrial applications. Featuring i-Fitting® technology, this elbow comes complete with a body, front & back ferrule, nut, identification band, and a check ring for optimal compression and safety in high-pressure environments. The innovative design prevents over- and under-tightening, enhancing productivity, reducing costs, and setting a new industry standard.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

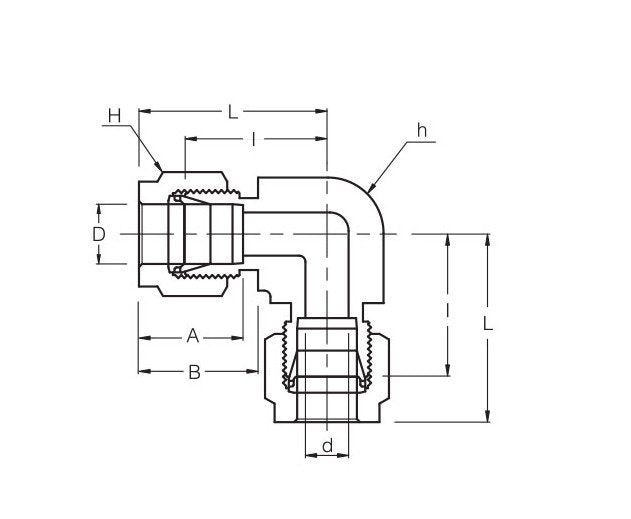

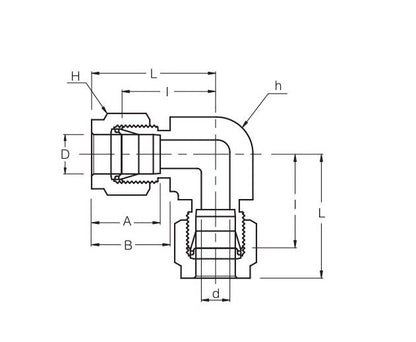

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
26.0 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
34.5 mm
Technical Specs Dimension L
44.6 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
20 mm
Technical Specs Width Across Flat H
32 mm
